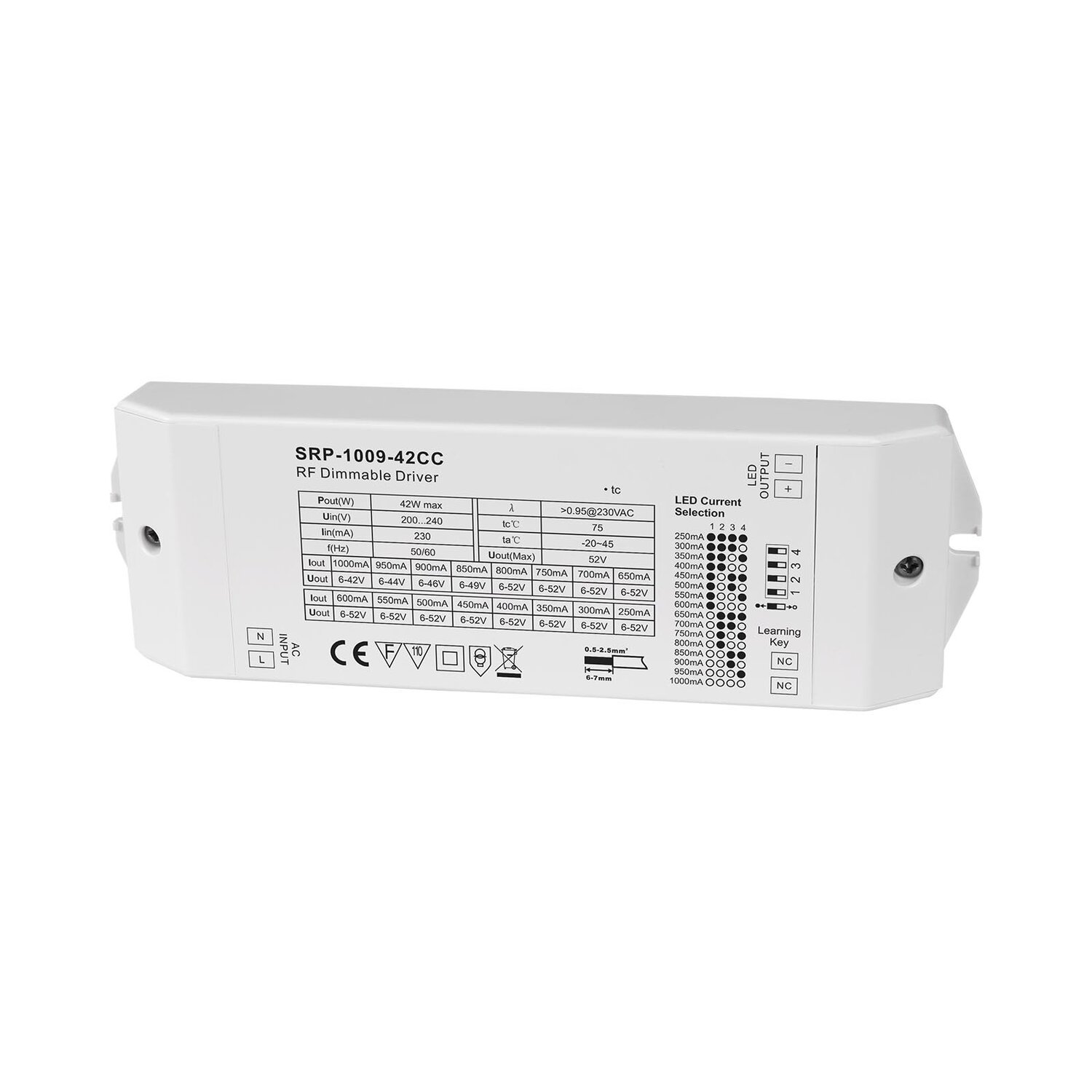

42W RF LED Driver (Constant Current)

SRP-1009-42CC
Product description
  • RF dimmable LED driver, radio frequency: 868/869.5/916.5/434mhz
  • Max. output power 42W total, 1 channels 250-1000mA constant current output
  • Dips to select multi operation currents
  • Class II power supply, full isolated plastic case
  • Built-in active PFC function, high power factor and efficiency
  • PWM digital dimming output, deep and smooth dimming to 0.1%
  • Enables to control ON/OFF, light intensity of connected single color LED lights
  • Compatible with a variety of RF transmitters
  • Each driver can pair to max. 8 different RF transmitters
  • Can be controlled by APP installed on |OS and Android systems while working with WiFi-RF transmitters
  • Waterproof grade: IP20, suitable for indoor LED lighting applications
  • 5 years warranty
SRP 1009 42CC 01 1
SRP 1009 42CC 01 1


The 42W RF LED Driver (Constant Current) is a Class II power supply with a fully isolated plastic case, providing a single-channel constant current output from 250 to 1000mA with a maximum output power of 42W, selectable via dipswitch; it features RF dimming at 868/869.5/916.5/434MHz, built-in active PFC for high power factor and efficiency, PWM digital dimming down to 0.1%, supports ON/OFF and brightness control for single-color LED lights, pairs with up to 8 RF transmitters, and enables APP control on iOS and Android systems when used with WiFi-RF transmitters.

Output LED Channel 1
Output Selectable Current 250mA 300mA 350mA 400mA 450mA 500mA 550mA 600mA
Output DC Voltage Range 6-52V 6-52V 6-52V 6-52V 6-52V 6-52V 6-52V 6-52V
Output Selectable Current 650mA 700mA 750mA 800mA 850mA 900mA 950mA 1000mA
Output DC Voltage Range 6-52V 6-52V 6-52V 6-52V 6-49V 6-46V 6-44V 6-42V
Output Rated Power 42W max
Input Voltage Range 200-240V AC
Input Frequency Range 50/60Hz
Input Power Factor (Typ.) > 0.95 @ 230VAC
Input Total Harmonic Distortion ≤ THD 15% (@ full load / 230VAC)
Input Efficiency (Typ.) 87% @ 230VAC full load
Input AC Current (Typ.) 0.27A @ 230VAC
Input Inrush Current (Typ.) COLD START 2A max. at 230VAC
Input Leakage Current < 0.5mA /230VAC
Protection Short Circuit Yes, auto recovery after fault removed
Protection Over Voltage Yes, auto recovery after fault removed
Protection Over Temperature Yes, auto recovery after fault removed
Environment Working Temp -20℃ ~ +45℃
Environment Max. Case Temp 75℃(Ta=”45℃”)
Environment Working Humidity 10% ~ 95% RH non-condensing
Environment Storage Temp. & Humidity -40℃ ~ +80℃，10%~95% RH
Safety & EMC Safety Standards ENEC EN61347-1, EN61347-2-13 approved
Safety & EMC Withstand Voltage I/P-O/P: 3.75KVAC
Safety & EMC EMC Emission EN55015, EN61000-3-2, EN61000-3-3
Safety & EMC EMC Immunity EN61547, EN61000-4-2,3,4,5,6,8,11, surge immunity Line-Line 1KV
Others MTBF 188700H, MIL-HDBK-217F @ 230VAC at full load and 25℃ ambient temperature
Others Dimension 178*57*21mm (L*W*H)
