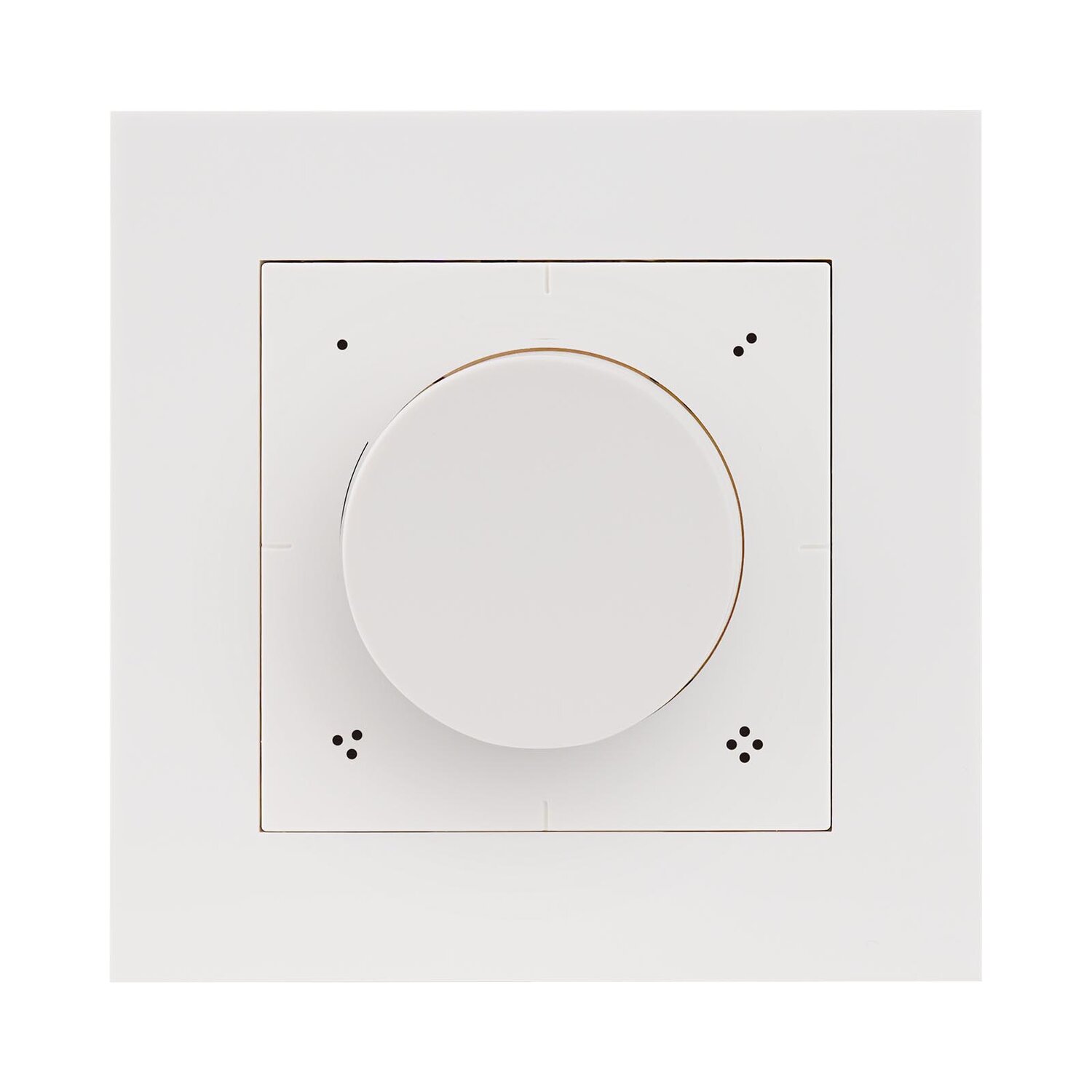

4-Key 2.4G Mesh Rotary & Push Button Smart Dimmer

SR-SB2835RAC-NK4

Product description

100-240VAC wide input and output voltage, can work under no neutral wiring and with neutral wiring
Supports resistive loads, capacitive loads or inductive loads
Enables to set minimum brightness and startup brightness
1 channel output, up to 500W
Both leading edge version and trailing edge versions are available for choosing, factory default is trailing edge
Enables to control ON/OFF and light intensity of connected load
Controlled through both smart App and remote controls, no gateway required
Easy & quick pairing to the smart App by simply pushing the reset button, supports voice control through Alexa
Mesh network, much longer control distance, transmits received signal to neighbor devices
Up to 30m transmission distance between every two neighbor devices
Encrypted two-way communication, quick status feedback, safe & reliable data transmission
Compatible with universal 2.4G mesh remotes, each LED controller can pair to max. 8 remotes
Cloud control is available for remote access, works with Amazon Alexa and Google Home
With push switch input, can be controlled by universal AC push switches
Standard size, can be compatible with existing EU standard frames, and installed into standard size wall box
Radio Frequency : 2.4GHz

This dimmer controller supports both 100-240VAC input and output voltage, allowing it to work with or without neutral wiring. It is compatible with resistive, capacitive, and inductive loads, offering flexible control over lighting intensity and ON/OFF functions. With a maximum output of 500W, the controller features both leading and trailing edge options, with the default set to trailing edge. It enables easy pairing to a smart app for control, supports voice commands via Alexa, and can be integrated into a mesh network for extended range and reliable data transmission. The device allows cloud control for remote access, works with Amazon Alexa and Google Home, and is compatible with universal 2.4GHz mesh remotes. It also features a push switch input for control via standard AC push switches and is designed to fit into standard EU-sized wall boxes, making it convenient for installation.

Input Voltage	100-240VAC
Output Voltage	100-240VAC
Output Current	2.2A max.
Minimum Load	7W LED(no neutral without bypass), 3W LED(no neutral with bypass), No minimum load requirement with neutral
Max. Number of Parallel Connected Load	9
Size(LxWxH)	83.5×83.5×50.9mm
