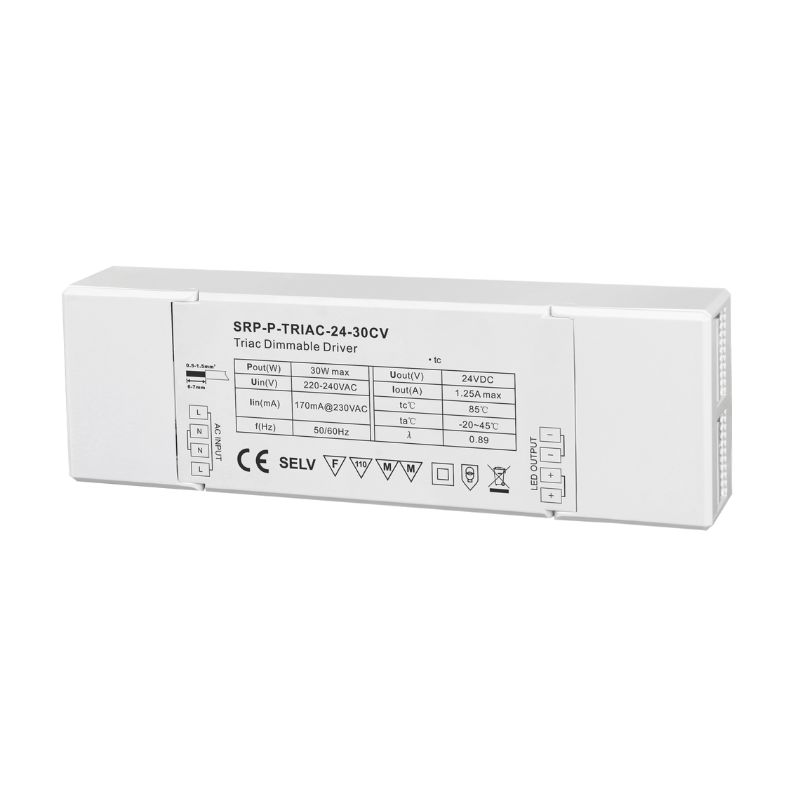

The 30W Triac LED Driver is a Triac dimmable LED driver with 1 channel, providing 24V constant voltage output and a maximum power of 30W. It is designed to control single-color LED lighting, featuring high power factor and efficiency. The driver is compatible with universal Triac dimmers and offers PWM digital dimming output for smooth and deep dimming down to 1%. Suitable for indoor LED lighting applications.
| Output | LED Channel | 1 (with 2 groups of terminal) |
|---|---|---|
| Output | DC Voltage | 24V DC |
| Output | Max. Current | 1.25A |
| Output | Voltage Tolerance | ±1% |
| Output | Rated Power | Max. 30W |
| Input | Voltage Range | 220-240V AC |
| Input | Frequency | 50/60Hz |
| Input | Power Factor (Typ.) | >0.9 |
| Input | Total Harmonic Distortion | ≤ THD 15% (@ full load / 230VAC) |
| Input | Efficiency (Typ.) | > 86% @ 230VAC |
| Input | Input Current | 160mA @ 230VAC |
| Input | Leakage Current | < 0.5mA /230VAC |
| Control | Dimming Interface | Triac |
| Control | Dimming Range | 1%-100% |
| Control | Dimming Method | Pulse Width Modulation |
| Protection | Over Current | Yes, auto recovery after fault removed |
| Protection | Over Temperature | Yes, auto recovery after fault removed |
| Environment | Working Temp | -20℃ ~ +45℃ |
| Environment | Max. Case Temp | 85℃(Ta=”45℃”) |
| Environment | Working Humidity | 10% ~ 95% RH non-condensing |
| Environment | Storage Temp. & Humidity | -40℃ ~ +80℃，10%~95% RH |
| Safety & EMC | Safety Standards | EN61347-1, EN61347-2-13 |
| Safety & EMC | Withstand Voltage | I/P-O/P: 3.75KVAC |
| Safety & EMC | EMC Emission | EN55015, EN61000-3-2, EN61000-3-3 |
| Safety & EMC | EMC Immunity | EN61547, EN61000-4-2,3,4,5,6,8,11, surge immunity Line-Line 1KV |
| Others | MTBF | 193600H, MIL-HDBK-217F @ 230VAC at full load and 25℃ ambient temperature |
| Others | Dimension | 170*53*28mm (L*W*H) |
