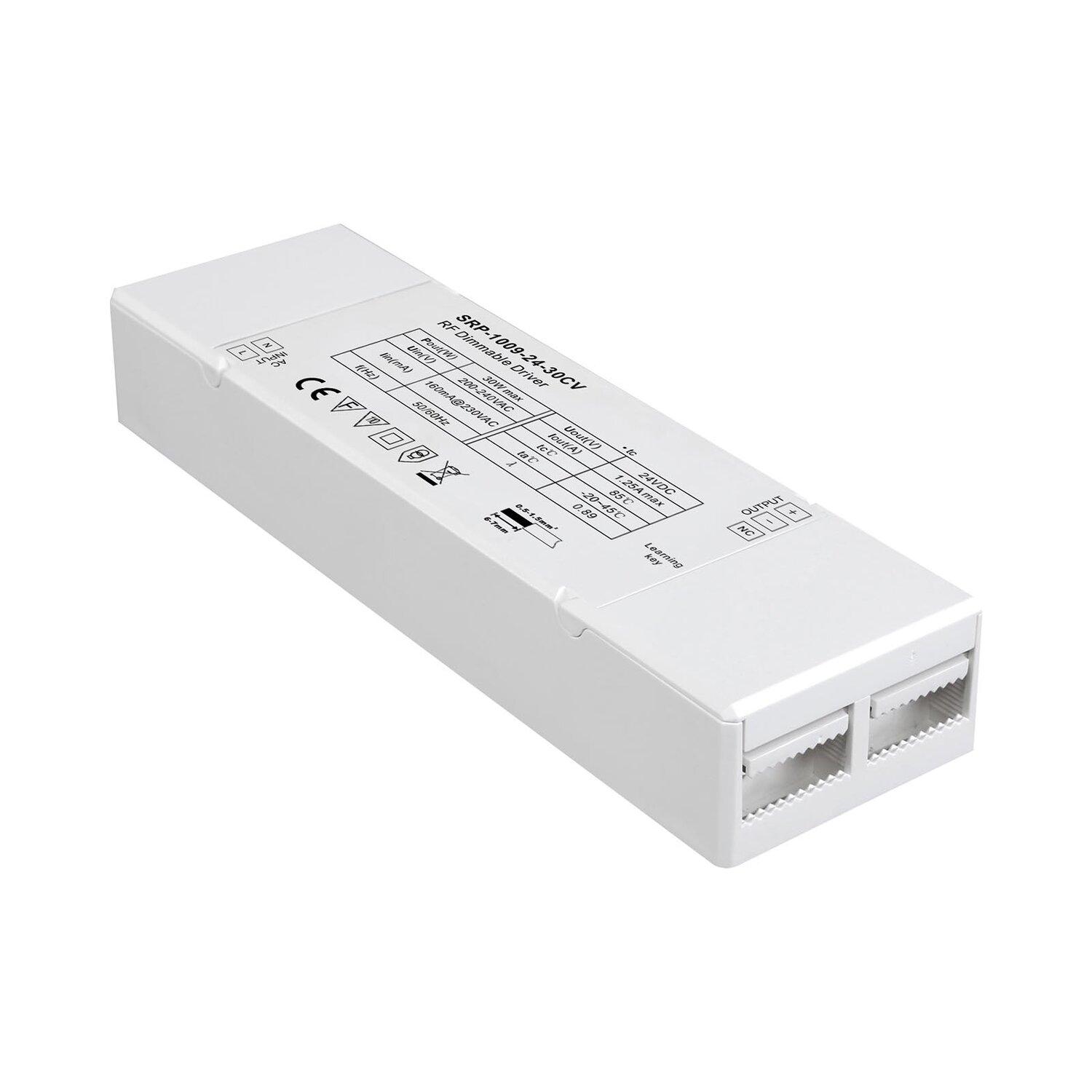

The 30W RF LED Driver (Constant Voltage) provides 1 channel 12V/24VDC constant voltage output and features a class II power supply with a fully isolated plastic case.
It includes a built-in active PFC function, with a power factor of greater than 0.95 and an efficiency of over 86%. This driver also has a built-in RF wireless dimming interface, is compliant with the Safety Extra Low Voltage standard, and offers overload and over-temperature protection. It is compatible with a variety of RF remote controls and can be WiFi controlled via an app on both iOS and Android systems. With a radio frequency range of 868/869.5/915/916.5/434 MHz, it is suitable for indoor LED lighting applications.
| Output | LED Channel | 1 | |
|---|---|---|---|
| Output | DC Voltage | 12VDC | 24VDC |
| Output | Max. Current | Max. 2.5A | Max. 1.25A |
| Output | Voltage Tolerance | ±1% | |
| Output | Rated Power | Max. 30W | |
| Input | Voltage Range | 200 ~ 240VAC | |
| Input | Frequency Range | 50/60Hz | |
| Input | Power Factor (Typ.) | > 0.9 @ 230VAC | |
| Input | Total Harmonic Distortion | ≤ THD 15% (@ full load / 230VAC) | |
| Input | Efficiency (Typ.) | 86% @ 230VAC full load | |
| Input | AC Current (Typ.) | 160mA @ 230VAC | |
| Input | Inrush Current (Typ.) | COLD START Max. 2A at 230VAC | |
| Input | Leakage Current | < 0.5mA /230VAC | |
| Control | Dimming Interface | RF Wireless | |
| Control | Dimming Range | 0.1%-100% | |
| Control | Dimming Method | Pulse Width Modulation | |
| Protection | Over Current | Yes, recovers automatically after fault condition is removed | |
| Protection | Over Temperature | Yes, recovers automatically after fault condition is removed | |
| Environment | Working Temp | -20℃ ~ +45℃ | |
| Environment | Max. Case Temp | 85℃(Ta=”45℃”) | |
| Environment | Working Humidity | 10% ~ 95% RH non-condensing | |
| Environment | Storage Temp. & Humidity | -40℃ ~ +80℃，10%~95% RH | |
| Safety & EMC | Safety Standards | EN61347-1, EN61347-2-13 | |
| Safety & EMC | Withstand Voltage | I/P-O/P: 3.75KVAC | |
| Safety & EMC | Isolation Resistance | I/P-O/P: 100M Ohms / 500VDC / 25℃ / 70% RH | |
| Safety & EMC | EMC Emission | EN55015, EN61000-3-2, EN61000-3-3 | |
| Safety & EMC | EMC Immunity | EN61547, EN61000-4-2,3,4,5,6,8,11, surge immunity Line-Line 1KV | |
| Others | MTBF | 190200H, MIL-HDBK-217F @ 230VAC full load and 25℃ ambient temperature | |
| Others | Dimension | 170*53.4*28mm (L*W*H) |
