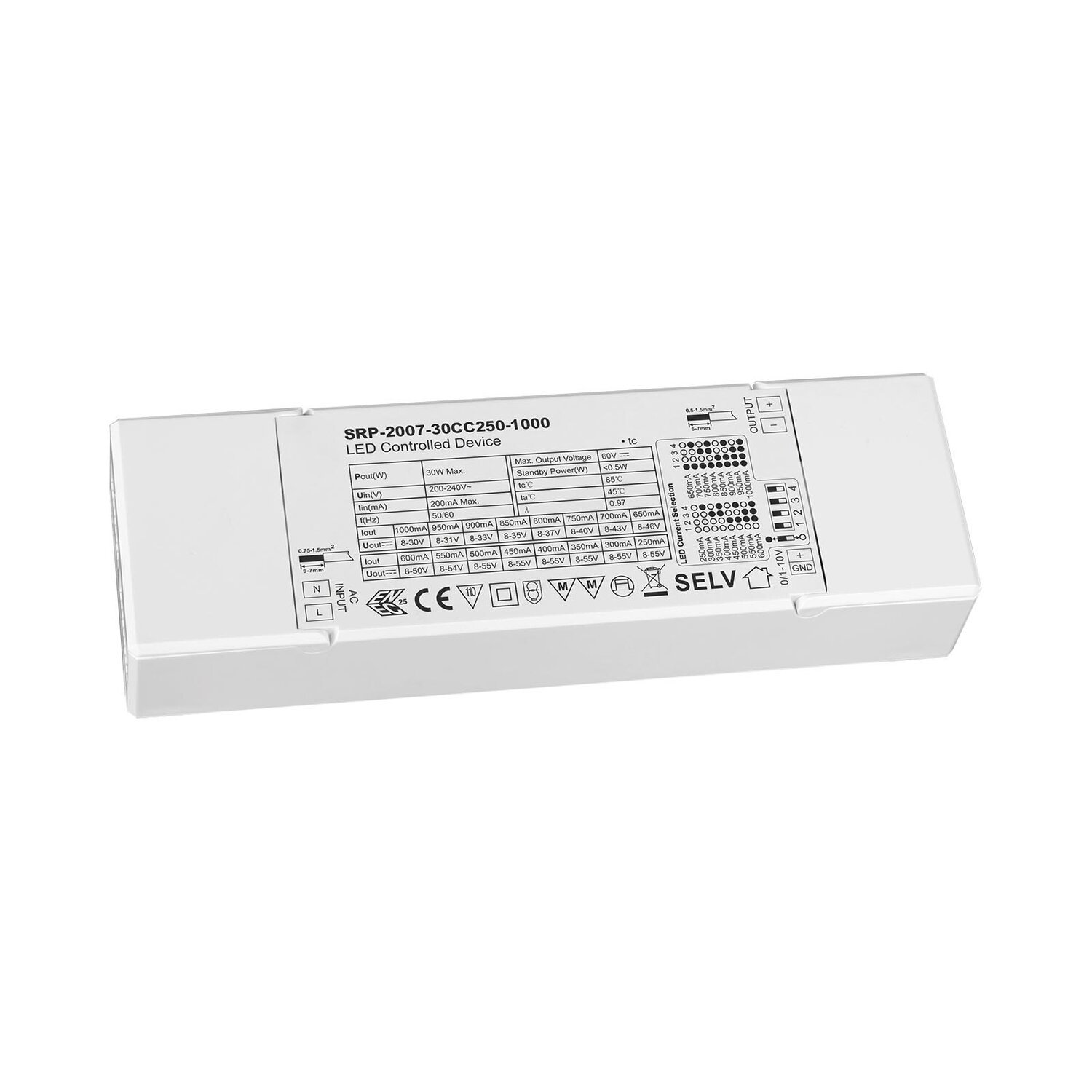

SRP-2007-30CC250-1000 is a 30w dimmable 0/1-10V LED light transformer with 1 channel constant current output and adjustable current from 250ma to 1000ma by DIP switches on the driver, which enables it to be suitable for LED lights with different current. It is designed with 200-240VAC input. Power factor of the driver can be over 0.9 and efficiency is higher than 83%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. The dimmable driver is controlled via 1-10v control unit and can be compatible with universal 1-10v signal. 0-10v version is optional.
| Output | Selectable Current | 250mA | 300mA | 350mA | 400mA | 450mA | 500mA | 550mA | 600mA |
|---|---|---|---|---|---|---|---|---|---|
| DC Voltage Range | 8-55V | 8-55V | 8-55V | 8-55V | 8-55V | 8-55V | 8-54V | 8-50V | |
| Selectable Current | 650mA | 700mA | 750mA | 800mA | 850mA | 900mA | 950mA | 1000mA | |
| DC Voltage Range | 8-46V | 8-43V | 8-40V | 8-37V | 8-35V | 8-33V | 8-31V | 8-30V | |
| Rated Power | 30W max | ||||||||
| Input | Voltage Range | 200-240V AC | |||||||
| Frequency Range | 50/60Hz | ||||||||
| Power Factor (Typ.) | > 0.9 @ 230VAC | ||||||||
| Total Harmonic Distortion | ≤ THD 12% (@ full load / 230VAC) | ||||||||
| Efficiency (Typ.) | 83% @ 230VAC full load | ||||||||
| AC Current (Typ.) | 0.17A @ 230VAC | ||||||||
| Inrush Current (Typ.) | COLD START 2A max. at 230VAC | ||||||||
| Leakage Current | < 0.5mA /230VAC | ||||||||
| Control | Dimming Interface | 0/1-10V | |||||||
| Dimming Range | 0.1%-100% | ||||||||
| Dimming Method | Amplitude dimming (PWM dimming under 1%) | ||||||||
| Dimming Curve | Logarithmic | ||||||||
| Environment | Working Temp | -20℃ ~ +45℃ | |||||||
| Max. Case Temp | 85℃(Ta=”45℃”) | ||||||||
| Working Humidity | 10% ~ 95% RH non-condensing | ||||||||
| Storage Temp. & Humidity | -40℃ ~ +80℃，10%~95% RH | ||||||||
| Protection | Short Circuit | Yes, auto recovery after fault removed | |||||||
| Over Voltage | Yes, auto recovery after fault removed | ||||||||
| Over Temperature | Yes, auto recovery after fault removed | ||||||||
| Safety & EMC | Safety Standards | ENEC EN61347-1, EN61347-2-13 approved | |||||||
| Withstand Voltage | I/P-O/P: 3.75KVAC | ||||||||
| EMC Emission | EN55015, EN61000-3-2, EN61000-3-3 | ||||||||
| EMC Immunity | EN61547, EN61000-4-2,3,4,5,6,8,11, surge immunity Line-Line 1KV | ||||||||
| Others | MTBF | 189400H, MIL-HDBK-217F @ 230VAC at full load and 25℃ ambient temperature | |||||||
| Dimension | 170*53.4*28mm (L*W*H) | ||||||||
