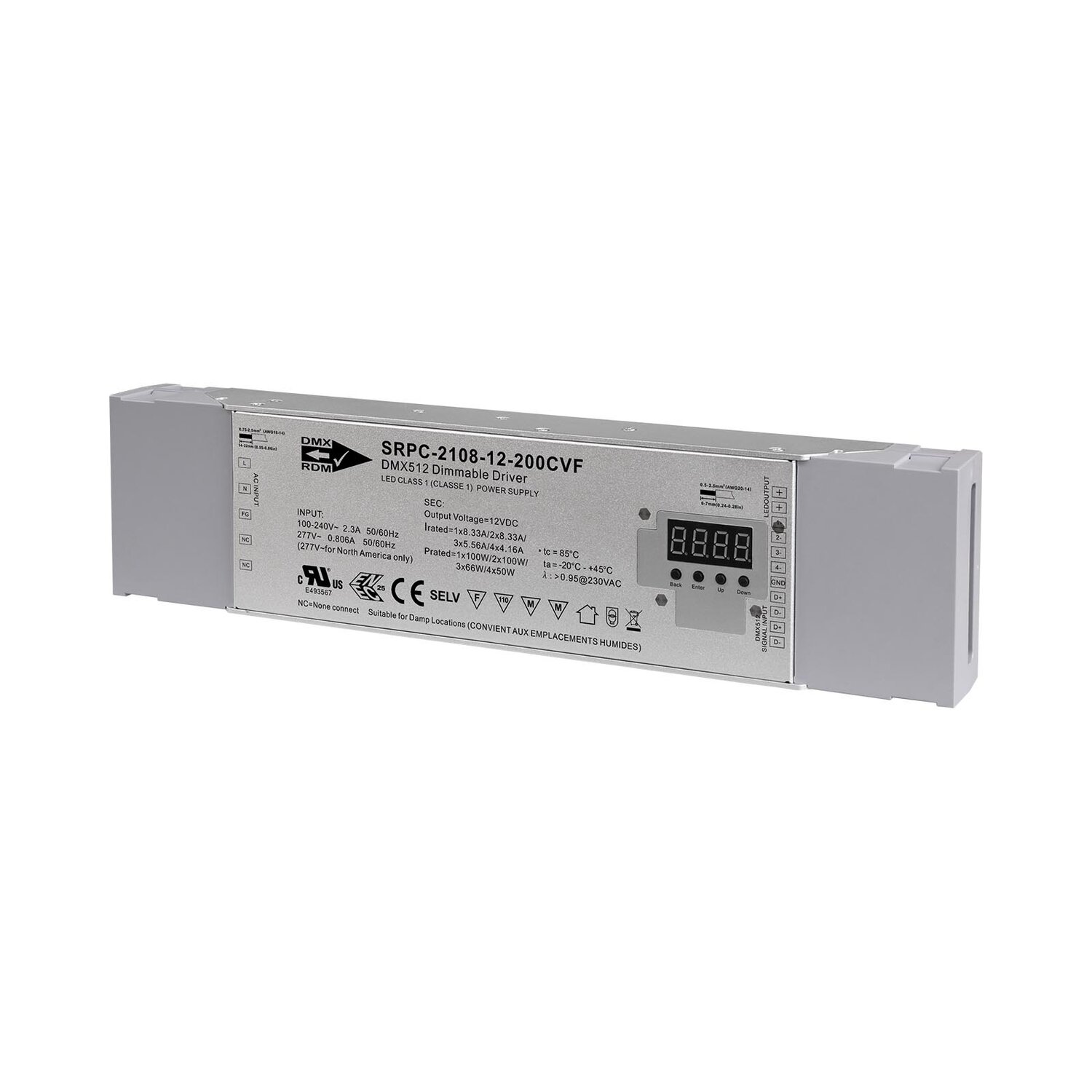

The 200W DMX512 & RDM LED Driver is a dimmable constant voltage driver with a rectangular metal case, featuring 4 channels of 12/24VDC output, a Class 1 fully isolated metal case, built-in two-stage active power factor correction with a power factor over 0.98 and efficiency above 93%, an adjustable PWM output frequency from 500Hz to 35kHz, a built-in DMX dimming interface supporting DMX address and channel quantity settings as well as 8-bit or 16-bit PWM resolution, and configurable gamma dimming curves and DMX decoding modes, compliant with DMX512 (2008), DMX512-A, RDM V1.0 standards, Safety Extra Low Voltage standards, and offering overload and over temperature protection.
| Output | LED Channel | 4 | |
|---|---|---|---|
| Output | DC Voltage | 12V DC | 24V DC |
| Output | Max. Current | Max. 8.3A/ch, ch1+ch2+ch3+ch4=16.6A | Max. 4.1A/ch, ch1+ch2+ch3+ch4=8.4A |
| Output | Voltage Tolerance | ±1% | |
| Output | Rated Power | max. 200W | |
| Input | Voltage Range | 100-277V AC | |
| Input | Frequency Range | 50/60Hz | |
| Input | Power Factor (Typ.) | > 0.98 @ 230VAC | |
| Input | Total Harmonic Distortion | ≤ THD 15% (@ full load / 230VAC) | |
| Input | Efficiency (Typ.) | 93% @ 230VAC full load | |
| Input | AC Current (Typ.) | 2.3A @ 100VAC, 1A @ 230VAC, 0.9A@277VAC | |
| Input | Leakage Current | < 0.5mA /230VAC | |
| Input | Standby Power Consumption | < 1W | |
| Control | Dimming Interface | DMX/RDM | |
| Control | Dimming Range | 0.1%-100% | |
| Control | Dimming Method | Pulse Width Modulation | |
| Control | Dimming Curve | Linear, Logarithmic | |
| Protection | Over Current | Yes, recovers automatically after fault condition is removed | |
| Protection | Over Temperature | Yes, recovers automatically after fault condition is removed | |
| Environment | Working Temp | -20℃ ~ +45℃ | |
| Environment | Max. Case Temp | 85℃ | |
| Environment | Working Humidity | 10% ~ 95% RH non-condensing | |
| Environment | Storage Temp. & Humidity | -40℃ ~ +80℃，10%~95% RH | |
| Safety & EMC | Safety Standards | UL8750, CAN/CSA C22.2 No. 250.13-14, ENEC EN61347-1, EN61347-2-13 approved | |
| Safety & EMC | Withstand Voltage | I/P-O/P: 3.75KVAC | |
| Safety & EMC | Isolation Resistance | I/P-O/P: 100M Ohms / 500VDC / 25℃ / 70% RH | |
| Safety & EMC | EMC Emission | EN55015, EN61000-3-2, EN61000-3-3 | |
| Safety & EMC | EMC Immunity | EN61547, EN61000-4-2,3,4,5,6,8,11, surge immunity Line-Line 1KV | |
| Others | MTBF | 185900H, MIL-HDBK-217F @ 230VAC at full load and 25℃ ambient temperature |
