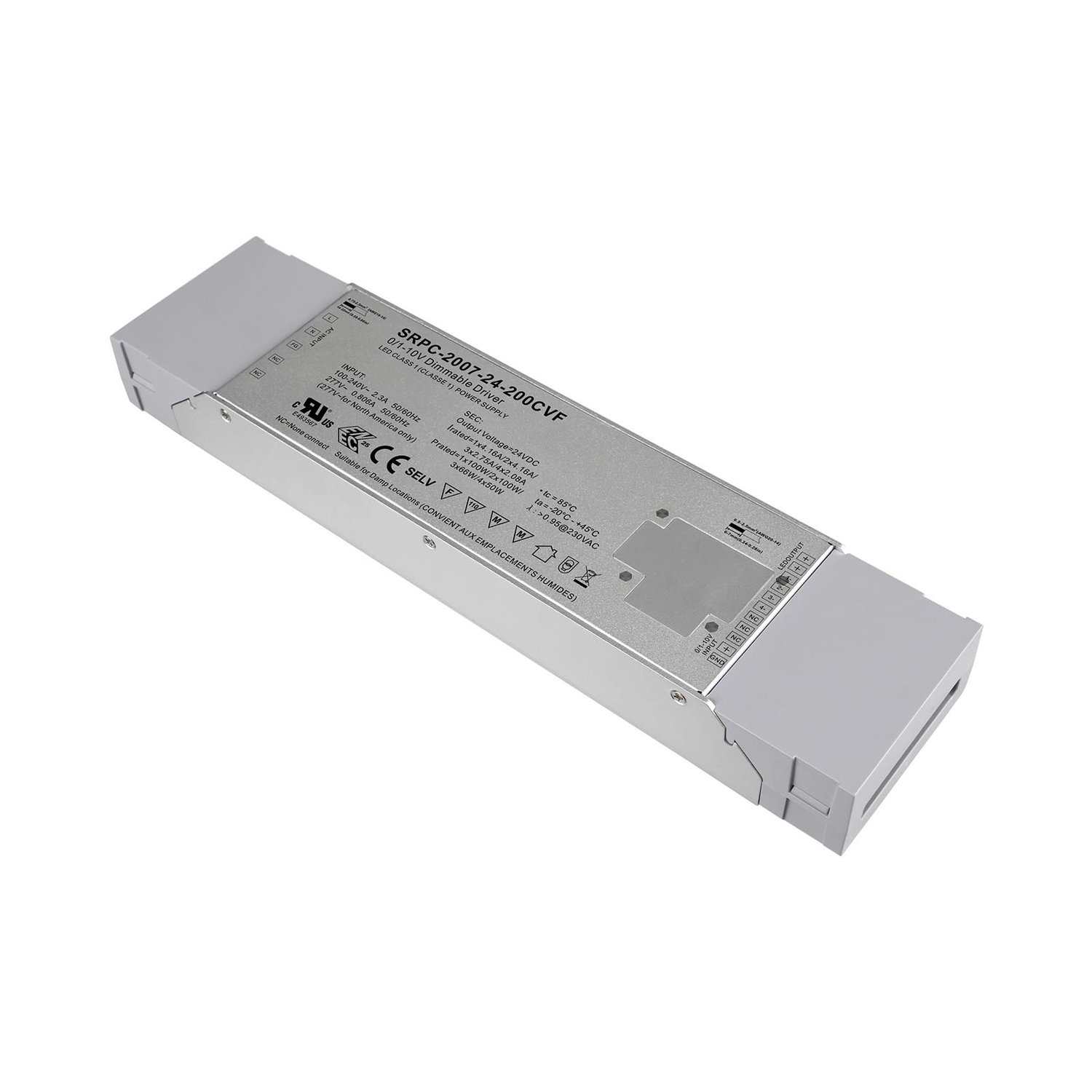

The 200W 0/1-10V LED Driver (Constant Voltage) is a dimmable LED driver with a rectangular metal case, providing 4 channels of 12/24VDC constant voltage output. It features a Class 1 power supply and a fully isolated metal case, along with a built-in two-stage active PFC function, ensuring a power factor greater than 0.98 and an efficiency exceeding 93%. The driver has low standby power consumption of less than 1W and includes a built-in 0/1-10V dimming interface, compatible with universal 0/1-10V signals. Compliant with Safety Extra Low Voltage standards, it also offers over-load and over-temperature protection, making it suitable for indoor LED lighting applications.
| Output | LED Channel | 4 | |
|---|---|---|---|
| DC Voltage | 12V DC | 24V DC | |
| Max. Current | Max. 8.3A/ch, ch1+ch2+ch3+ch4=16.6A | Max. 4.1A/ch, ch1+ch2+ch3+ch4=8.4A | |
| Voltage Tolerance | ±1% | ||
| Rated Power | max. 200W | ||
| Input | Voltage Range | 100-277V AC | |
| Input | Frequency Range | 50/60Hz | |
| Input | Power Factor (Typ.) | > 0.98 @ 230VAC | |
| Input | Total Harmonic Distortion | ≤ THD 15% (@ full load / 230VAC) | |
| Input | Efficiency (Typ.) | 93% @ 230VAC full load | |
| Input | AC Current (Typ.) | 2.3A @ 100VAC, 1A @ 230VAC, 0.9A@277VAC | |
| Input | Leakage Current | < 0.5mA /230VAC | |
| Input | Standby Power Consumption | < 1W | |
| Control | Dimming Interface | 0/1-10V | |
| Control | Dimming Range | 0.1%-100% | |
| Control | Dimming Method | Pulse Width Modulation | |
| Protection | Over Current | Yes, recovers automatically after fault condition is removed | |
| Protection | Over Temperature | Yes, recovers automatically after fault condition is removed | |
| Environment | Working Temp | -20℃ ~ +45℃ | |
| Environment | Max. Case Temp | 85℃ | |
| Environment | Working Humidity | 10% ~ 95% RH non-condensing | |
| Environment | Storage Temp. & Humidity | -40℃ ~ +80℃，10%~95% RH | |
| Safety & EMC | Safety Standards | UL8750, CAN/CSA C22.2 No. 250.13-14, ENEC EN61347-1, EN61347-2-13 approved | |
| Safety & EMC | Withstand Voltage | I/P-O/P: 3.75KVAC | |
| Safety & EMC | Isolation Resistance | I/P-O/P: 100M Ohms / 500VDC / 25℃ / 70% RH | |
| Safety & EMC | EMC Emission | EN55015, EN61000-3-2, EN61000-3-3 | |
| Safety & EMC | EMC Immunity | EN61547, EN61000-4-2,3,4,5,6,8,11, surge immunity Line-Line 1KV | |
| Others | MTBF | 185900H, MIL-HDBK-217F @ 230VAC at full load and 25℃ ambient temperature |
