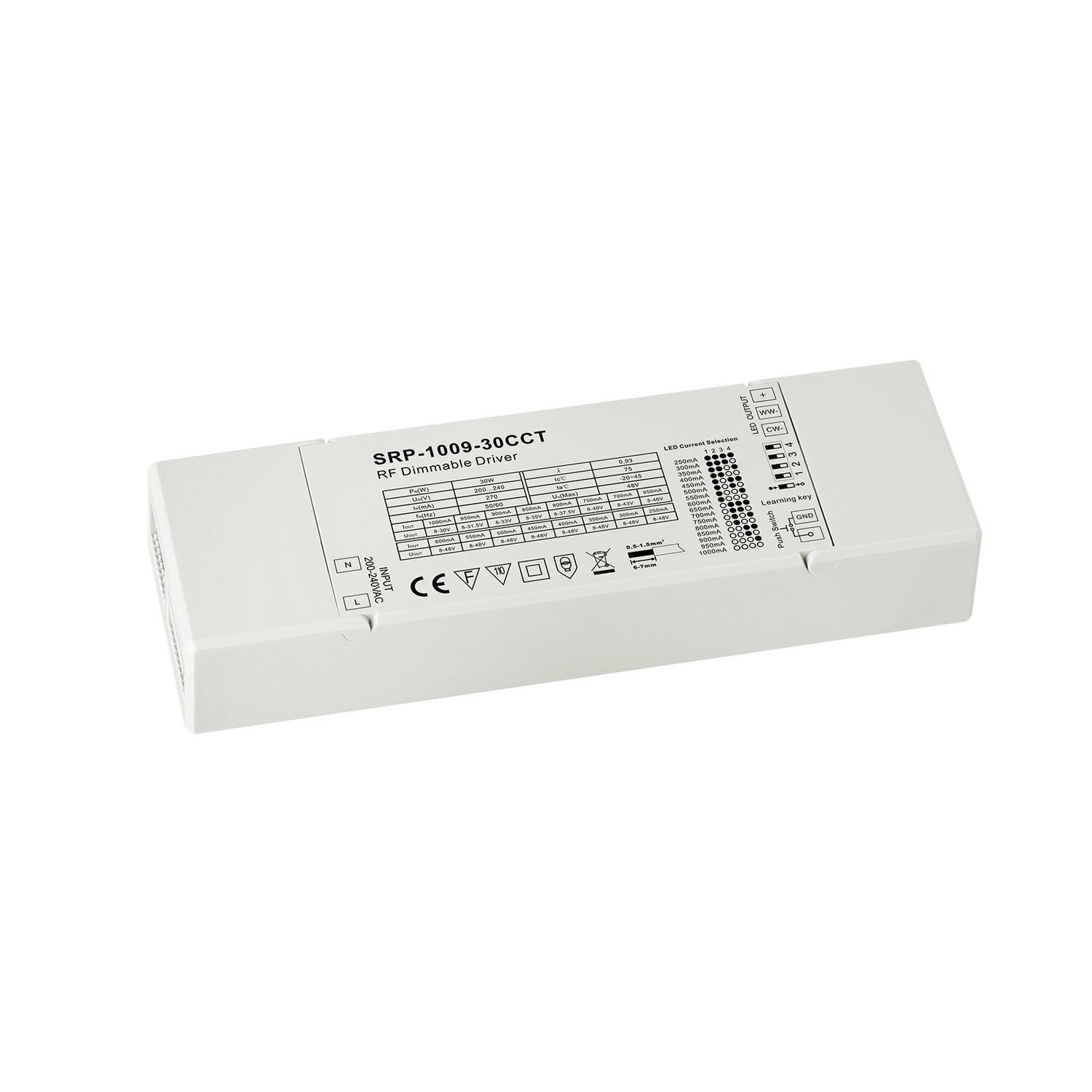

Name: 2 channels 30W RF LED Driver(Constant Current) - Sunricher
Brand: Sunricher

The 2 Channels 30W RF LED Driver (Constant Current) is a dimmable LED driver with RF control, offering a dimming range of 0.1%-100%. With a maximum output power of 30W, it features two channels providing 250-1000mA constant current output, with adjustable operation current set via dips. This driver is equipped with a class II power supply and a fully isolated plastic case, ensuring high power factor and efficiency. It is designed for controlling dual color LED lighting and is compatible with various RF remotes. With a radio frequency range of 868/869.5/916.5/434 MHz, it is suitable for indoor LED lighting applications.

Output	Selectable Current	250mA	300mA	350mA	400mA	450mA	500mA	550mA	600mA
Output	DC Voltage Range	8-48V	8-48V	8-48V	8-48V	8-48V	8-48V	8-48V	8-48V
Output	Selectable Current	650mA	700mA	750mA	800mA	850mA	900mA	950mA	1000mA
Output	DC Voltage Range	8-46V	8-43V	8-40V	8-37V	8-35V	8-33V	8-31V	8-30V
Output	Rated Power	30W
Input	Voltage Range	200-240V AC
Input	Frequency	50/60Hz
Input	Power Factor (Typ.)	>0.9
Input	Efficiency (Typ.)	83% @ 230VAC
Input	Input Current (Typ.)	0.16A @ 230VAC
Input	Inrush Current (Typ.)	COLD START Max. 2A at 230VAC
Protection	Short Circuit	Yes, auto recovery after fault removed
Protection	Over Voltage	Yes, auto recovery after fault removed
Protection	Over Temperature	Yes, auto recovery after fault removed
Environment	Working Temp	-20℃ ~ +45℃
Environment	Max. Case Temp	85℃(Ta=”45℃”)
Environment	Working Humidity	10% ~ 95% RH non-condensing
Environment	Storage Temp. & Humidity	-40℃ ~ +80℃，10%~95% RH
Safety & EMC	Safety Standards	EN61347-1, EN61347-2-13
Safety & EMC	Withstand Voltage	I/P-O/P: 3.75KVAC
Safety & EMC	EMC Emission	EN55015, EN61000-3-2, EN61000-3-3
Safety & EMC	EMC Immunity	EN61547, EN61000-4-2,3,4,5,6,8,11, surge immunity Line-Line 1KV
Others	MTBF	189500H, MIL-HDBK-217F @ 230VAC at full load and 25℃ ambient temperature
Others	Dimension	17053.428mm (LWH)
