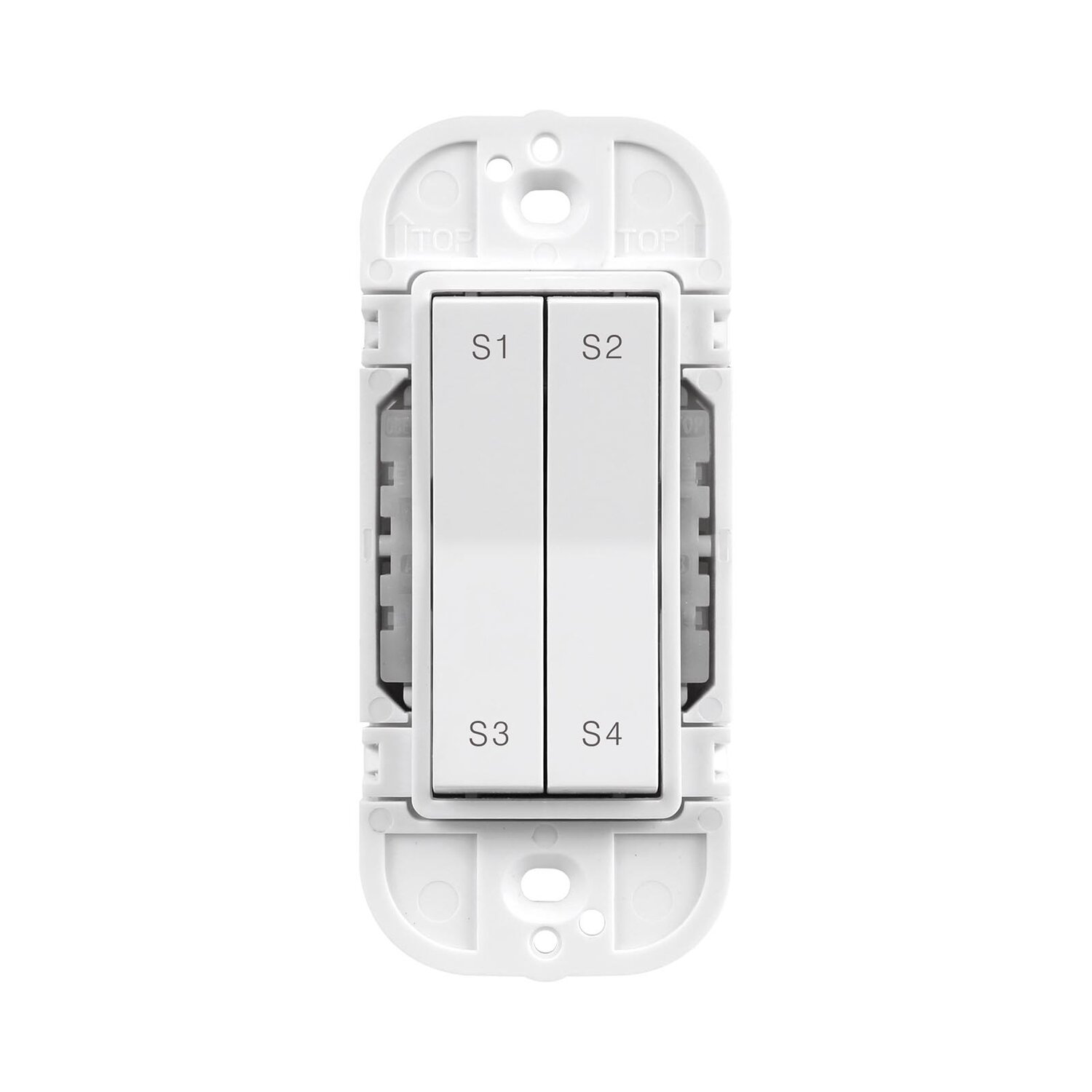

The 2.4G Mesh Remote Scene Controller is a wall-mounted, battery-powered device that operates on 2.4G Mesh technology with ultra-low power consumption. It allows for easy and quick pairing to 2.4G mesh receivers by simply pressing the buttons, enabling control of one zone of receivers with four scenes saved to each zone. The mesh network extends the control distance, allowing receivers to transmit signals to each other, with a transmission range of up to 30 meters between neighboring devices. Operating on a 2.4 GHz global frequency, the receiver status can be quickly synchronized to the smart app, and each receiver can be paired with up to eight remote controls. It is also compatible with universal 2.4G mesh light devices and fits into a standard US size frame.
| Protocol | 2.4G Mesh |
|---|---|
| Power Supply | 3VDC (1xCR2430 Battery) |
| Transmission Frequency | 2.4GHz |
| Transmission Range (free field) | 30m |
| Protection Type | IP20 |
| Dimming Range | 0.1%-100% |
| Dimensions | 80.9×80.9×13.3mm |
