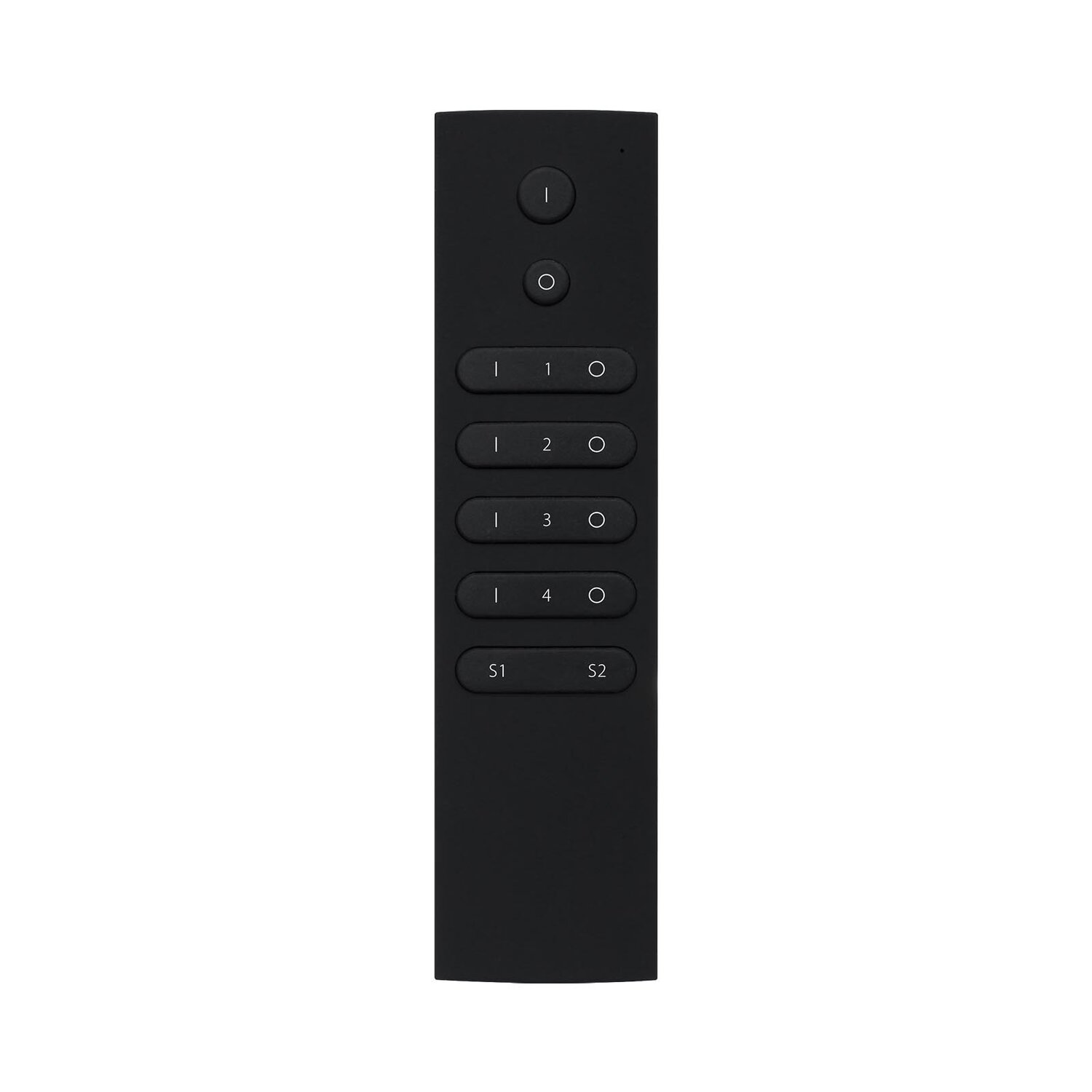

2.4G Mesh DIM Remote Control

SR-SB9001K12-DIM-Z4
Product description
  • 2.4G Mesh DIM Remote Control
  • Single color remote control to control 4 zones of receivers and 2 scenes
  • Easy & quick pairing to the 2.4G mesh receivers by simply pushing the buttons
  • Mesh network for further control distance, receivers can transmit signal to each other
  • Each remote can control numerous receivers
  • Each receiver can be paired to max. 8 remote controls
  • The controlled receiver status can be quickly synchronized to the smart APP
  • Transmission range between every two neighbor devices up to 30m
  • 2.4G low power consumption technology, long battery life
  • With magnet on the back, easy fasten to & remove from the bracket

The 2.4G Mesh DIM Remote Control allows for easy control of up to 4 zones of receivers and 2 scenes, offering quick pairing with 2.4G mesh receivers through a simple push of the buttons. The mesh network extends the control range, enabling receivers to transmit signals to each other. Each remote can manage multiple receivers, and each receiver can be paired with up to 8 remotes. The receiver’s status is rapidly synchronized with the smart app, and the transmission range between neighboring devices can reach up to 30 meters. Featuring 2.4G low power consumption technology, the remote ensures long battery life, while the magnetic back allows for easy attachment and removal from the bracket.

Protocol 2.4G Mesh
Operation Voltage 3VDC (CR2032)
Transmission Frequency 2.4GHz
Transmission Range (free field) 30m
Protection Type IP20
Dimming Range 0.1%-100%
Dimension 150×38.6x12mm
Protection Grade IP20
