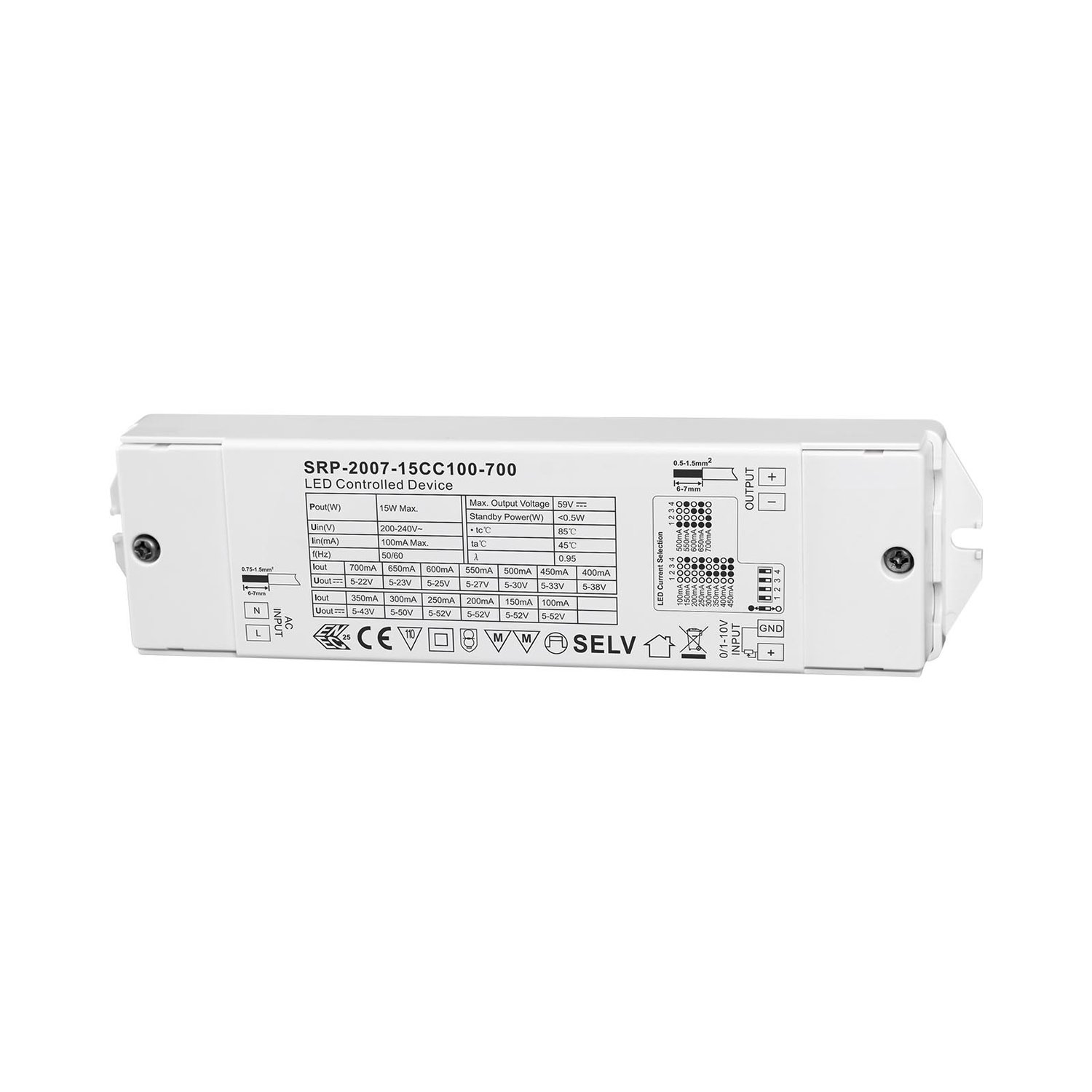

SRP-2007-15CC100-700 is a 15w 0/1-10V dimmable LED transformer with 1 channel constant current output and adjustable current from 100ma to 700ma by factory setting. It is designed with 200-240VAC input. Power factor of the driver can be over 0.9 and efficiency is higher than 80%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. The dimmable transformer is controlled via 1-10v control unit and can be compatible with universal 1-10v signal. 0-10v version is optional.
| Output | Selectable Current | 100mA | 150mA | 200mA | 250mA | 300mA | 350mA | 400mA | 450mA |
|---|---|---|---|---|---|---|---|---|---|
| DC Voltage Range | 5-52V | 5-52V | 5-52V | 5-52V | 5-50V | 5-43V | 5-38V | 5-33V | |
| Selectable Current | 500mA | 550mA | 600mA | 650mA | 700mA | ||||
| DC Voltage Range | 5-30V | 5-27V | 5-25V | 5-23V | 5-22V | ||||
| Rated Power | 15W max | ||||||||
| Input | Voltage Range | 200-240V AC | |||||||
| Frequency Range | 50/60Hz | ||||||||
| Power Factor (Typ.) | > 0.95 @ 230VAC | ||||||||
| Total Harmonic Distortion | ≤ THD 15% (@ full load / 230VAC) | ||||||||
| Efficiency (Typ.) | 85% @ 230VAC full load | ||||||||
| AC Current (Typ.) | 0.09A @ 230VAC | ||||||||
| Inrush Current (Typ.) | COLD START 6.16A max. at 230VAC | ||||||||
| Leakage Current | < 5mA /230VAC | ||||||||
| Control | Dimming Interface | 0/1-10V | |||||||
| Dimming Range | 0.1%-100% | ||||||||
| Dimming Method | Amplitude dimming (PWM dimming under 1%) | ||||||||
| Dimming Curve | Logarithmic | ||||||||
| Environment | Working Temp | -20℃ ~ +45℃ | |||||||
| Max. Case Temp | 85℃(Ta=”45℃”) | ||||||||
| Working Humidity | 10% ~ 95% RH non-condensing | ||||||||
| Storage Temp. & Humidity | -40℃ ~ +80℃，10%~95% RH | ||||||||
| Protection | Short Circuit | Yes, auto recovery after fault removed | |||||||
| Over Temperature | Yes, auto recovery after fault removed | ||||||||
| Safety & EMC | Safety Standards | ENEC EN61347-1, EN61347-2-13 approved | |||||||
| Withstand Voltage | I/P-O/P: 3.75KVAC | ||||||||
| EMC Emission | EN55015, EN61000-3-2, EN61000-3-3 | ||||||||
| EMC Immunity | EN61547, EN61000-4-2,3,4,5,6,8,11, surge immunity Line-Line 0.5KV | ||||||||
| Others | MTBF | 190500H, MIL-HDBK-217F @ 230VAC at full load and 25℃ ambient temperature | |||||||
| Dimension | 178*46*22 mm (L*W*H) | ||||||||
