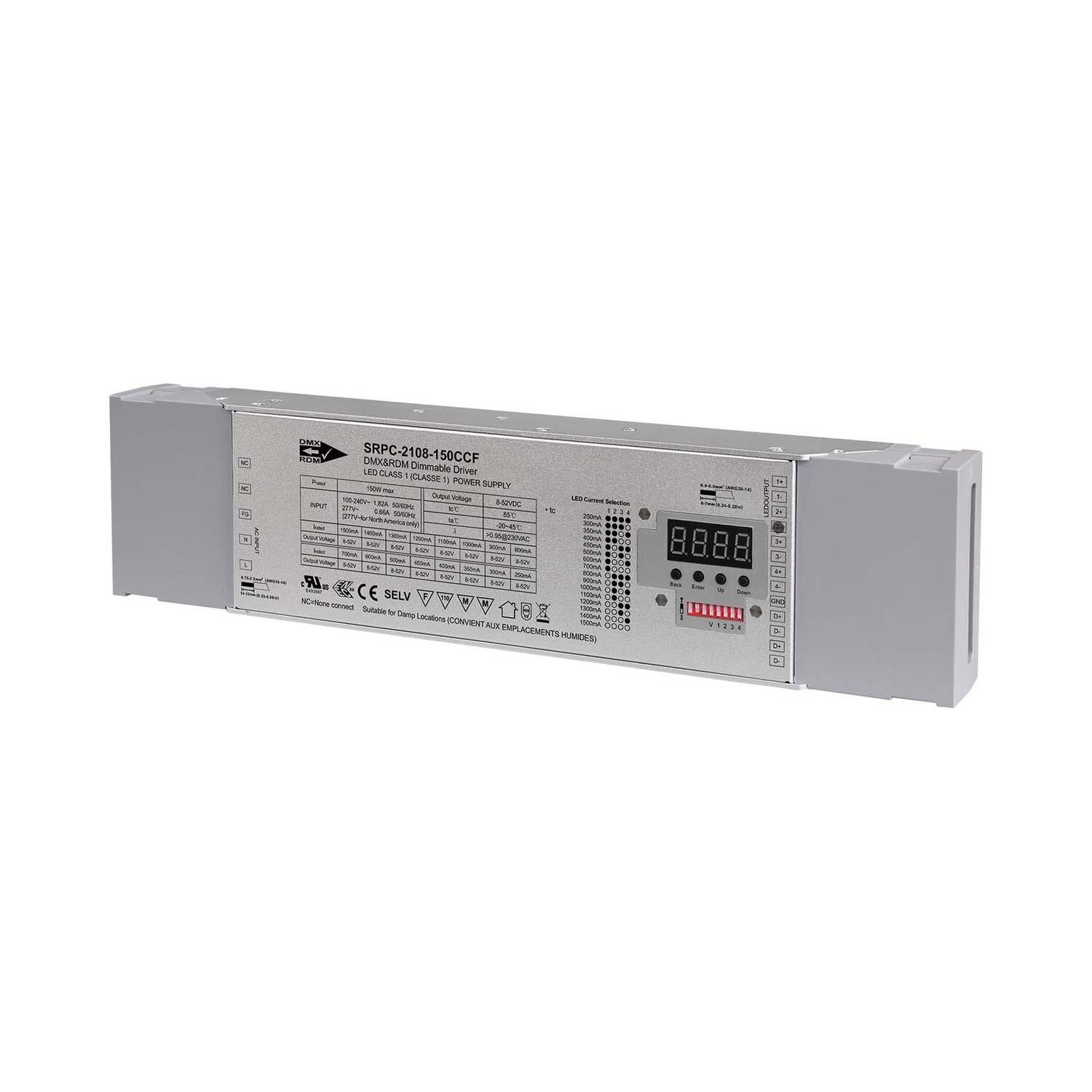

The 150W DMX & RDM LED Driver is a dimmable constant current driver with a maximum output power of 150W, featuring 4 channels with adjustable output current from 250mA to 1500mA set by dips, PWM output resolution configurable between 8bit and 16bit, an output PWM frequency adjustable from 500Hz to 35kHz, and dimming curve gamma values adjustable from 0.1 to 9.9, housed in a Class 1 fully isolated metal case with high power factor and efficiency, designed to control single color, dual color, and RGB/RGBW LED lighting, equipped with a built-in DMX512 interface supporting RDM bi-directional communication and compatible with universal DMX512 master controllers.
| Output | LED Channel | 4 | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Output | Selectable Current | 250mA | 300mA | 350mA | 400mA | 450mA | 500mA | 600mA | 700mA |
| Output | DC Voltage Range | 8-52V | 8-52V | 8-52V | 8-52V | 8-52V | 8-52V | 8-52V | 8-52V |
| Output | Selectable Current | 800mA | 900mA | 1000mA | 1100mA | 1200mA | 1300mA | 1400mA | 1500mA |
| Output | DC Voltage Range | 8-52V | 8-52V | 8-52V | 8-52V | 8-52V | 8-52V | 8-52V | 8-52V |
| Output | Current Tolerance | ±3% | |||||||
| Output | Rated Power | ≤ Max. 77W/CH, CH1+CH2+CH3+CH4 150W | |||||||
| Input | Voltage Range | 100-277V AC | |||||||
| Input | Frequency Range | 50/60Hz | |||||||
| Input | Power Factor (Typ.) | > 0.95 @ 230VAC | |||||||
| Input | Total Harmonic Distortion | ≤ THD 15% (@ full load / 230VAC) | |||||||
| Input | Efficiency (Typ.) | 93% @ 230VAC full load | |||||||
| Input | Inrush Current (Typ.) | COLD START Max. 65A at 230VAC | |||||||
| Input | AC Current (Typ.) | 1.82A @ 230VAC | |||||||
| Control | Dimming Interface | DMX/RDM | |||||||
| Control | Dimming Range | 0.1%-100% | |||||||
| Control | Dimming Method | Pulse Width Modulation | |||||||
| Control | Dimming Curve | Logarithmic, Linear | |||||||
| Protection | Short Circuit | Yes, recovers automatically after fault condition is removed | |||||||
| Protection | Over Voltage | Yes, recovers automatically after fault condition is removed | |||||||
| Protection | Over Temperature | Yes, recovers automatically after fault condition is removed | |||||||
| Environment | Working Temp | -25℃ ~ +45℃ | |||||||
| Environment | Max. Case Temp | 85℃(Ta=”45℃”) | |||||||
| Environment | Working Humidity | 10% ~ 95% RH non-condensing | |||||||
| Environment | Storage Temp. & Humidity | -40℃ ~ +80℃，10%~95% RH | |||||||
| Safety & EMC | Safety Standards | UL8750, CAN/CSA C22.2 No. 250.13-14, ENEC EN61347-1, EN61347-2-13 approved | |||||||
| Safety & EMC | Withstand Voltage | I/P-O/P: 3.75KVAC | |||||||
| Safety & EMC | Isolation Resistance | I/P-O/P: 100M Ohms / 500VDC / 25℃ / 70% RH | |||||||
| Safety & EMC | EMC Emission | EN55015, EN61000-3-2, EN61000-3-3 | |||||||
| Safety & EMC | EMC Immunity | EN61547, EN61000-4-2,3,4,5,6,8,11, surge immunity Line-Line 1KV | |||||||
| Others | MTBF | 188100H, MIL-HDBK-217F @ 230VAC at full load and 25℃ ambient temperature |
