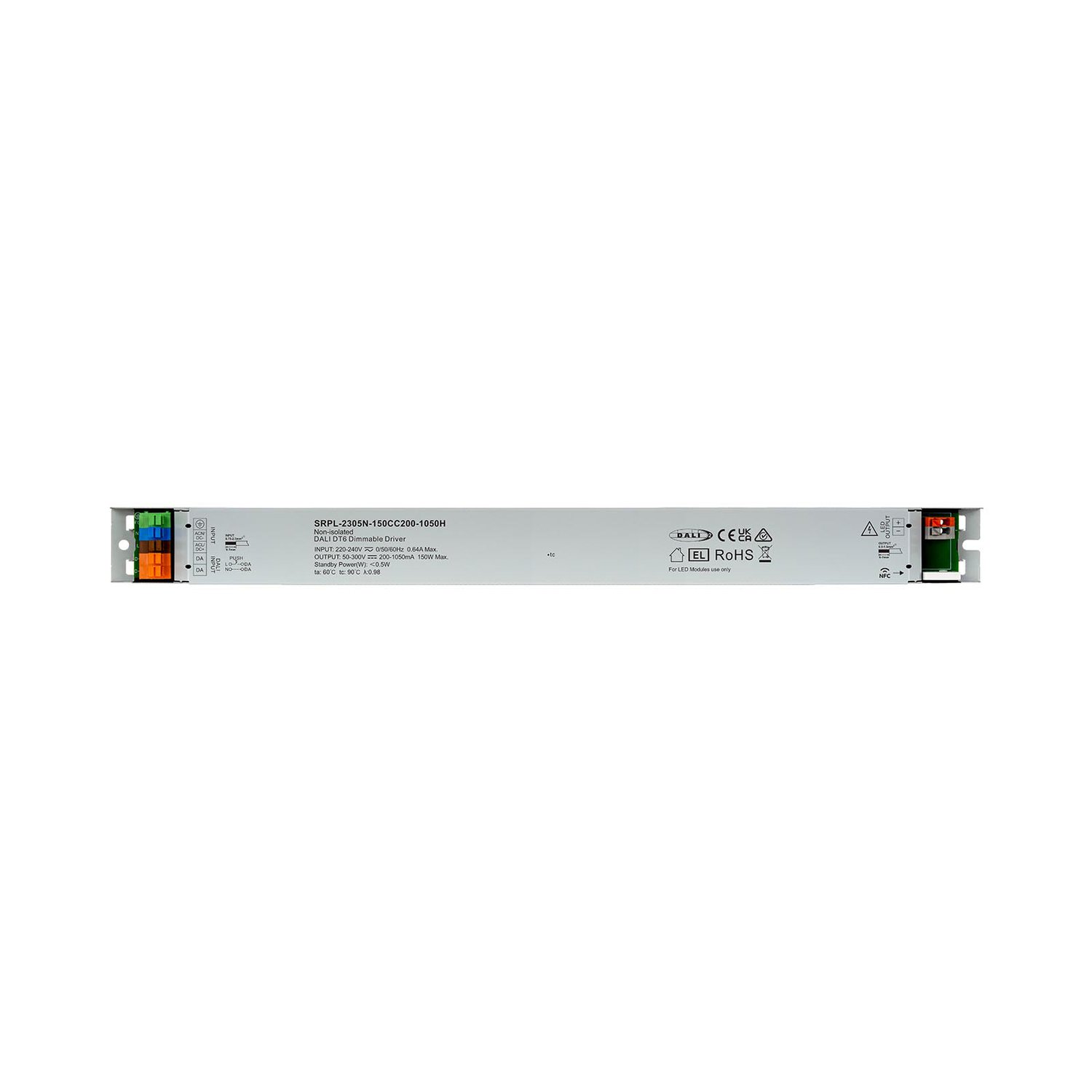

SRPL-2305N-150CC200-1050H is a DALI-2 certified long metal casing 80w Non-SELV NFC dimmable LED driver. It is designed with 1 channel constant current output with adjustable current from 200mA to 1050mA, which enables it to be suitable for LED lights with different current. It is designed with 220-240VAC input. Power factor of the driver can be over 0.98 and efficiency is higher than 90%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. 1 DALI address for 1 channel output are assigned by DALI Master controller automatically, or by NFC Programming devices. Complying with IEC62386-101:2014, 102:2014, 207 ed.2, this DALI driver is compatible with DALI-2 certified application controllers and control devices.
| Output | LED Channel | 1 |
|---|---|---|
| Output | DC Voltage | 50-300V |
| Output | Current | 200-1050mA via NFC setting: Min. current gearlower to 0.1mA |
| Output | Current Accuracy | ±3%@ full load |
| Output | Rated Power | Max.150W |
| Input | Voltage Range | 220-240VAC/VDC |
| Input | Frequency Range | 0/50/60Hz |
| Input | Power Factor(Typ.) | > 0.98 @ 230VAC Full load |
| Input | Total Harmonic Distortion | THD≤ 10%(@ full load /230VAC) |
| Input | Efficiency (Typ.) | >90%@ 230VAC full load |
| Input | AC Current(Typ.) | 0.64A @ 230VAC |
| Input | Inrush Current (Typ.) | Max. 26.8A at 230VAC; 369us duration |
| Input | Leakage Current | <5mA/230VAC |
| Input | Standby Power Consumption | <0.5W |
| Input | Anti Surge | L-N:4KV/ L-N-G: 4KV |
| Control | Dimming Interface | DALI Device Type 6 (DALI consumption < 2mA)/ AC Push |
| Control | Dimming Range | 0.1%-100%@Max current |
| Control | Dimming Method | Amplitude/CCR dimming |
| Control | Dimming Curve | Linear/ Logarithmic optional |
| Protection | Short Circuit | Yes, recovers automatically after fault condition is removed |
| Protection | Over Current | Yes, recovers automatically after fault condition is removed |
| Protection | Over Temperature | Yes, recovers automatically aftertemperature drop |
| Environment | Working Temp. | -25℃~+60℃ |
| Environment | Max. Case Temp. | Tc=90°C |
| Environment | Working Humidity | 10%~95% RH non-condensing |
| Environment | Storage Temp. & Humidity | -40°C~+80°C, 10%~95% RH |
| Safety & EMC | Safety Standards | EN61347-1,EN61347-2-13,GB/T 19510.1-2023,GB/T19510.213-2023 |
| Safety & EMC | Withstand Voltage | I/P-FG:1500VAC,I/P-DA:1500VAC,O/P-DA:1500VAC |
| Safety & EMC | Isolation Resistance | I/P-FG:100MOhms/500VDC/25°C/70%RH |
| Safety & EMC | EMC Emission | EN55015,EN61000-3-2,EN61000-3-3,GB17625.1-2022,GB/T17743-2021 |
| Safety & EMC | EMC Immunity | EN61547,EN61000-4-2,3,4,5,6,8,11 |
| Others | MTBF | 191350H, MIL-HDBK-217F @ 230VAC full load and 25℃ ambient temperature |
| Others | Dimension | 355x30x21mm (L*W*H) |
| Others | Warranty | 5 Years |
