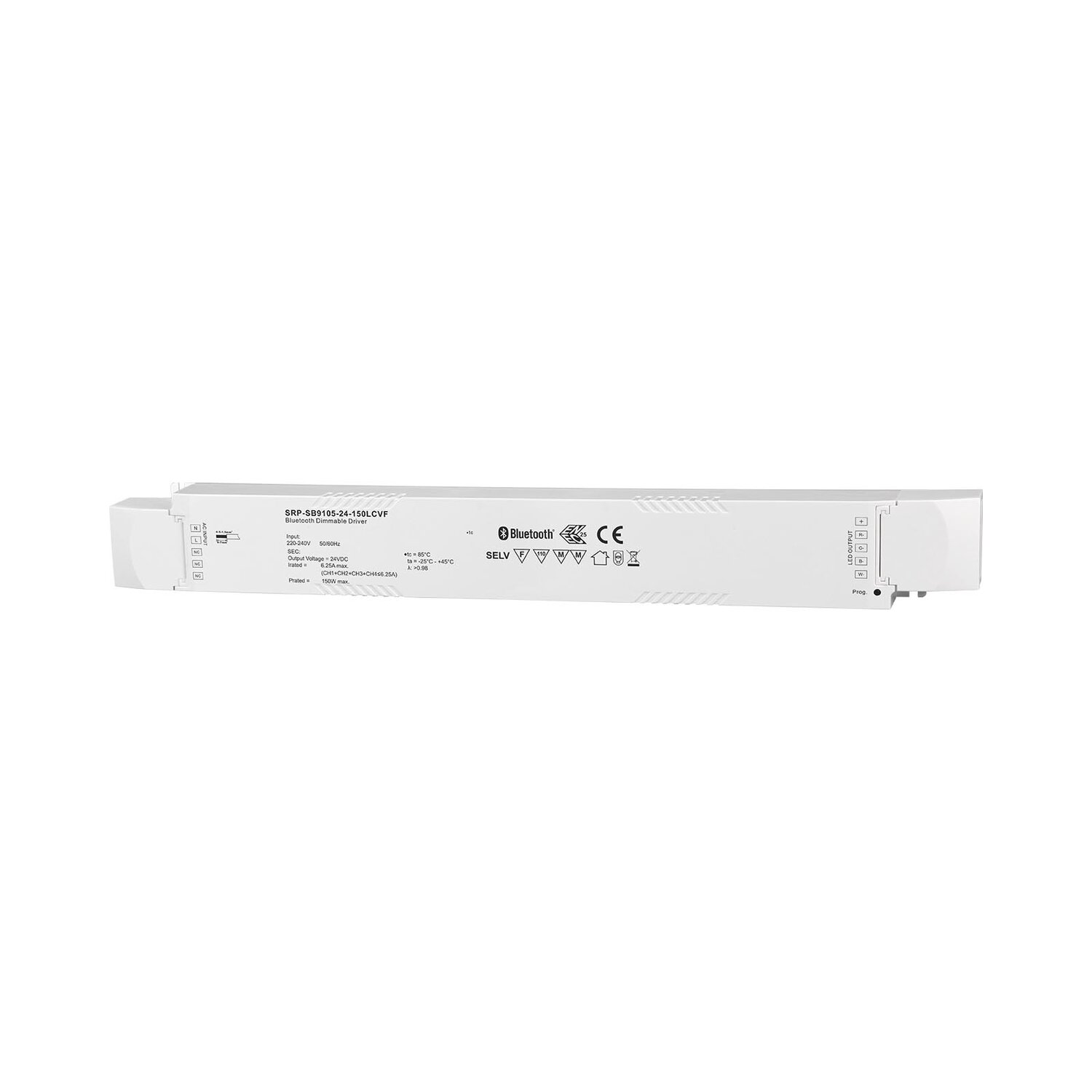

The 150W 24V Bluetooth RGBW Constant Voltage Dimmable LED Driver offers a maximum output power of 150W, with 4 channels of DC 24V constant voltage output.
It features high power factor and efficiency, providing deep and smooth dimming down to 0.1% without flicker. The driver consumes less than 0.5W in standby mode, meeting the latest ERP requirements. It enables control of ON/OFF, light intensity, CCT, and RGBW LED lights through both a smart app and remote controls, without the need for a gateway. The driver supports five different light types: RGBW, RGB, CCT, DIM, and ON/OFF, and can be easily paired to the smart app via a simple button press. With 2.4GHz global frequency and mesh network functionality, it allows for longer control distances and transmits signals to neighboring devices, with up to 30m transmission distance between two neighbor devices. The system uses encrypted two-way communication for quick status feedback and reliable data transmission. It is compatible with universal RF+Bluetooth remotes, supporting up to 8 remotes per LED controller, and is designed for indoor LED lighting applications with a waterproof grade of IP20.
| Output | LED Channel | 4 Channel |
|---|---|---|
| Output | DC Voltage | 24V DC |
| Output | Max. Current | Max. 6.25A |
| Output | Voltage Tolerance | ±3% |
| Output | Rated Power | Max. 150W |
| Input | Voltage Range | 220-240V AC |
| Input | Frequency Range | 50/60Hz |
| Input | Total Harmonic Distortion | THD < 6% (@ fullload /230VAC) |
| Input | Efficiency (Typ.) | 93% @ 230VAC full load |
| Input | AC Current (Typ.) | 0.71A @ 230VAC |
| Input | Inrush Current (Typ.) | COLD START Max. 46A @ 230VAC |
| Input | Leakage Current | < 0.5mA /230VAC |
| Input | Standby Power Consumption | < 0.5W |
| Input | Anti Surge | L-N:2KV |
| Control | Dimming Interface | Bluetooth |
| Control | Dimming Range | 0.1%-100% |
| Control | Dimming Method | Pulse Width Modulation |
| Control | Dimming Curve | Linear/Logarithmic optional |
| Protection | Over Voltage | Yes, recovers automatically after fault condition is removed |
| Protection | Over Load | Yes, recovers automatically after fault condition is removed |
| Protection | Short Circuit | Yes, recovers automatically after fault condition is removed |
| Protection | Over temperature | Yes, recovers automatically after temperature drop |
| Environment | Working Temp | -25℃ ~ +45℃ |
| Environment | Max. Case Temp | 85℃(Ta=”45℃”) |
| Environment | Working Humidity | 10% ~ 95% RH non-condensing |
| Environment | Storage Temp. & Humidity | -40℃ ~ +80℃，10%~95% RH |
| Safety & EMC | Safety Standards | IEC/EN61347-1, IEC/EN61347-2-13 |
| Safety & EMC | Withstand Voltage | I/P-O/P: 3.75KVAC |
| Safety & EMC | Isolation Resistance | I/P-O/P: 100M Ohms / 500VDC / 25℃ / 70% RH |
| Safety & EMC | EMC Emission | EN55015, EN61000-3-2 Class C, EN61000-3-3 |
| Safety & EMC | EMC Immunity | EN61000-4-2,3,4,5,6,8,11, EN614547 |
| Others | MTBF | 191500H, MIL-HDBK-217F @ 230VAC full load and 25℃ ambient temperature |
| Others | Dimension | 365.6*43*30mm (L*W*H) |
| Others | Warranty | 5 Years |
