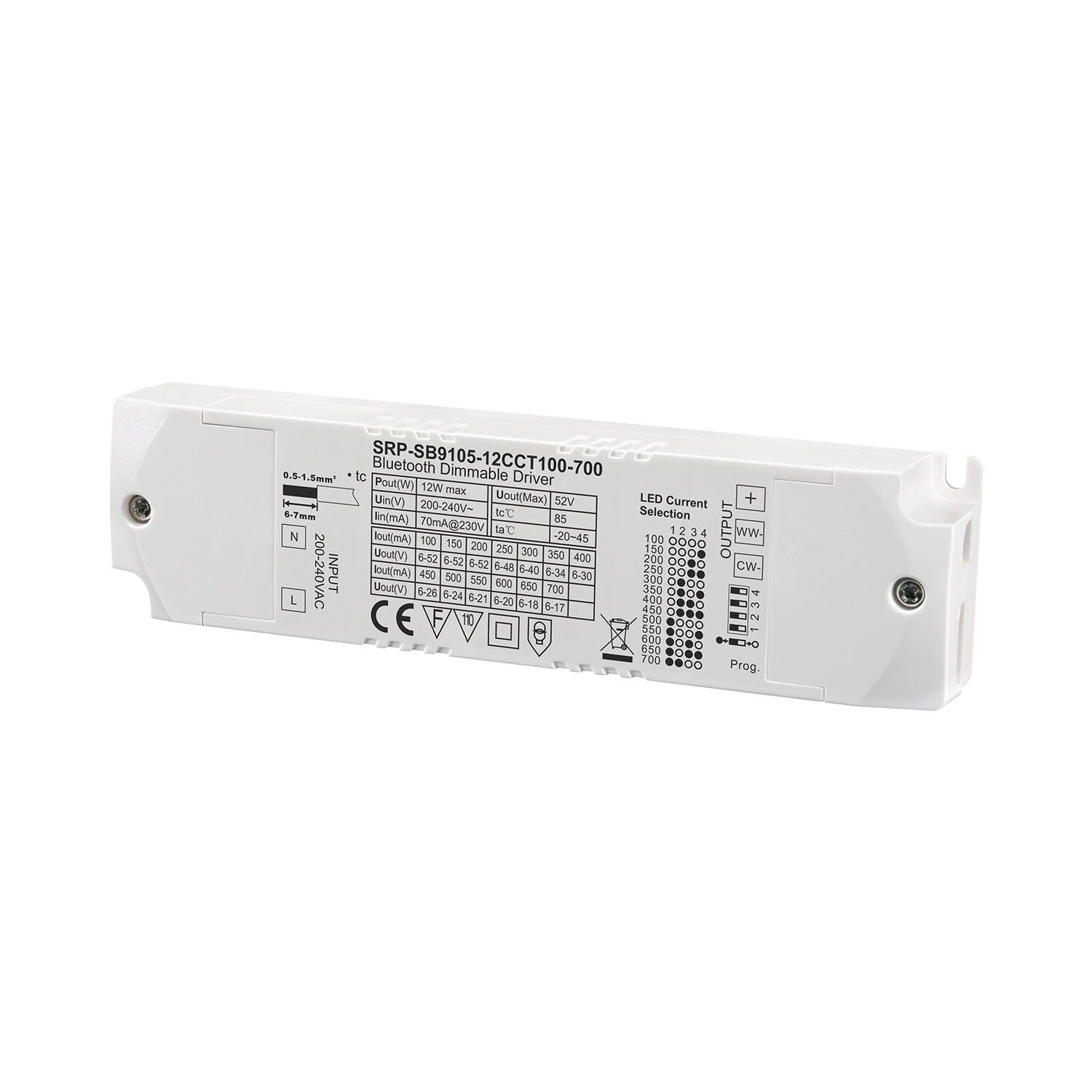

The 12W RF+Bluetooth® Dimmable Driver (Constant Current) features a dimming range of 0.1%-100% and offers a maximum output power of 12W with two constant current output channels. The output current can be adjusted from 100-700mA via dip switches, and it is powered by a Class 2 power supply with a fully isolated plastic case. The driver includes a built-in active PFC function, ensuring high power factor and efficiency, with standby power consumption of less than 0.5W to meet the latest ERP requirements. It can be controlled via both a smart app and remote controls, without the need for a gateway, and supports up to a 30m transmission distance between neighboring devices. Encrypted two-way communication ensures secure and reliable data transmission with quick status feedback. The driver is compatible with universal RF+Bluetooth remotes, allowing each unit to pair with up to 8 remotes, providing control over ON/OFF, light intensity, and CCT for connected CCT LED lights, making it ideal for indoor LED lighting applications.
| Output | LED Channel | 2 |
|---|---|---|
| Output | DC Voltage | 6-52V DC |
| Output | Current | Current option from100~700mA, 50mA per gear |
| Output | Current Accuracy | ±3% |
| Output | Rated Power | Max. 12W |
| Input | Voltage Range | 200-240V AC |
| Input | Frequency Range | 50/60Hz |
| Input | Power Factor (Typ.) | > 0.95 @ 230VAC Full load |
| Input | Total Harmonic Distortion | ≤ THD 12% (@ full load / 230VAC) |
| Input | Efficiency (Typ.) | ＞80% @ 230VAC full load |
| Input | AC Current (Typ.) | 0.07A @ 230VAC |
| Input | Inrush Current (Typ.) | COLD START max. 8A at 230VAC |
| Input | Leakage Current Leakage Current | < 0.5mA /230VAC |
| Input | Standby Power Consumption | ＜0.5W |
| Input | Anti Surge | L-N:0.5KV |
| Control | Dimming Interface | RF+Bluetooth® |
| Control | Dimming Range | 0.1%-100% |
| Control | Dimming Method | Hybrid （PWM+CCR） dimming |
| Control | Dimming Curve | Linear/ Logarithmic optional |
| Protection | Short Circuit | Yes, recovers automatically after fault condition is removed |
| Protection | Over Current | Yes, recovers automatically after fault condition is removed |
| Protection | Over Temperature | Yes, recovers automatically after temperature drop |
| Environment | Working Temp | -25℃ ~ +45℃ |
| Environment | Max. Case Temp | 85℃(Ta=”45℃”) |
| Environment | Working Humidity | 10% ~ 95% RH non-condensing |
| Environment | Storage Temp. & Humidity | -40℃ ~ +80℃，10%~95% RH |
| Safety & EMC | Safety Standards | EN61347-1, EN61347-2-13 |
| Safety & EMC | Withstand Voltage | I/P-O/P: 3.75KVAC |
| Safety & EMC | Isolation Resistance | I/P-O/P: 100M Ohms / 500VDC / 25℃ / 70% RH |
| Safety & EMC | EMC Emission | En55015, EN61000-3-2, EN61000-3-3 |
| Safety & EMC | EMC Immunity | En61547, EN61000-4-2,3,4,5,6,8,11 |
| Others | MTBF | 191350H, MIL-HDBK-217F @ 230VAC full load and 25℃ ambient temperature |
| Others | Dimension | 135x35x20mm (L*W*H) |
| Others | Warranty | 5 Years |
