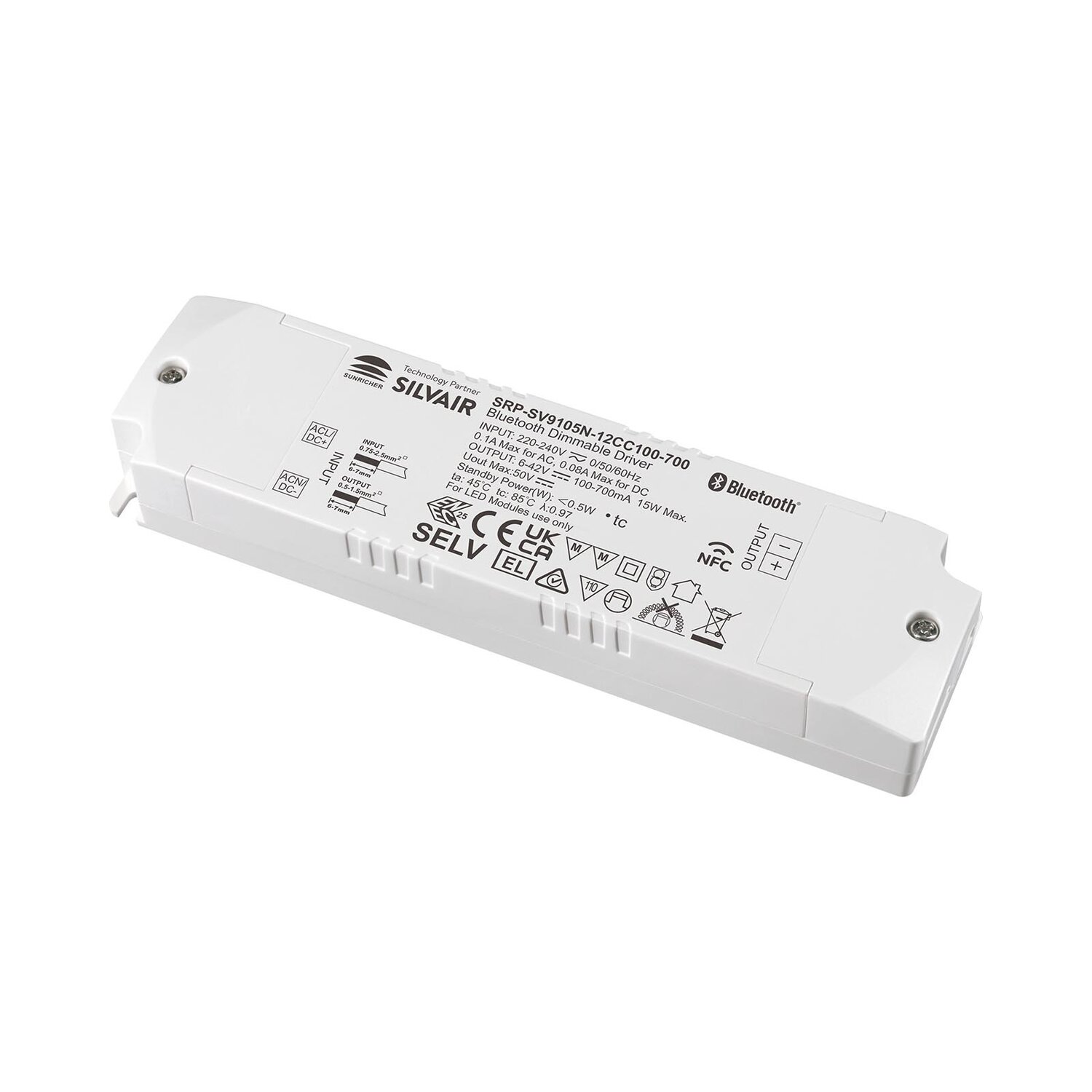

SRP-SV9105N-12CC100-700 is a plastic casing 12W Bluetooth NFC programmable LED driver, enabled by Silvair technology. It is designed with 1 channel constant current output with adjustable current from 100mA to 700mA, which enables it to be suitable for LED lights with different current. It is designed with 220-240VAC input. Power factor of the driver can be over 0.95 and efficiency is higher than 75%. It enables smooth and deep dimming to 0.01% without flickering and buzzing noise.
| Output | LED Channel | 1 |
|---|---|---|
| Output | DC Voltage | 6-42V, Max. 50V |
| Output | Current | 100-700mA via NFC tool; Min.current gear lower to 0.1mA, default 300mA |
| Output | Current Accuracy | ±3%( ±1%@Certain full load) @ full load |
| Output | Rated Power | Max. 12W |
| Input | Voltage Range | 220-240VAC/220-240VDC |
| Input | Absolute Voltage Range | 196-264VAC/196-264VDC |
| Input | Frequency Range | 0/50/60Hz |
| Input | Power Factor (Typ.) | > 0.95 @ 230VAC Full load* |
| Input | Total Harmonic Distortion | THD ≤ 12% (@ full load / 230VAC)* |
| Input | Efficiency (Typ.) | ＞77% @ 230VAC full load* |
| Input | AC Current (Typ.) | 0.1A Max. |
| Input | Inrush Current (Typ.) | Max. 3.96A at 230VAC; 90μs duration |
| Input | Leakage Current | < 5mA /230VAC |
| Input | Anti Surge | L-N:2KV |
| Control | Dimming Interface | Bluetooth® Mesh(BLE 5.2) |
| Control | Dimming Range | 0.01%-100%@ Max current |
| Control | Dimming Method | Amplitude/CCR dimming |
| Control | Dimming Curve | Linear/ Logarithmic optional |
| Protection | Short Circuit | Yes, remove the fault conditions and re-power the device |
| Protection | Over Current | Yes, remove the fault conditions and re-power the device |
| Protection | Over Temperature | Yes, remove the fault conditions and re-power the device |
| Environment | Working Temp. | -25℃ ~ +45℃ |
| Environment | Max. Case Temp. | TC=85℃ (Ta=”45℃”) |
| Environment | Working Humidity | 10% ~ 95% RH non-condensing |
| Environment | Storage Temp. & Humidity | -40℃ ~ +80℃, 10% ~ 95% RH |
| Safety & EMC | Safety Standards | EN61347-1, EN61347-2-13, GB/T 19510.1-2023, GB/T 19510.213-2023 |
| Safety & EMC | Withstand Voltage | I/P-O/P: 3.75KVAC |
| Safety & EMC | Isolation Resistance | I/P-O/P: 100M Ohms / 500VDC / 25℃ / 70% RH |
| Safety & EMC | EMC Emission | EN55015, EN61000-3-2, EN61000-3-3, GB 17625.1-2022, GB/T 17743-2021 |
| Safety & EMC | EMC Immunity | EN61547, EN61000-4-2,3,4,5,6,8,11 |
| Others | MTBF | 191350H, MIL-HDBK-217F @ 230VAC full load and 25℃ ambient temperature |
| Others | Dimension | 135x35x20mm (L*W*H) |
| Others | Warranty | 5 Years |
