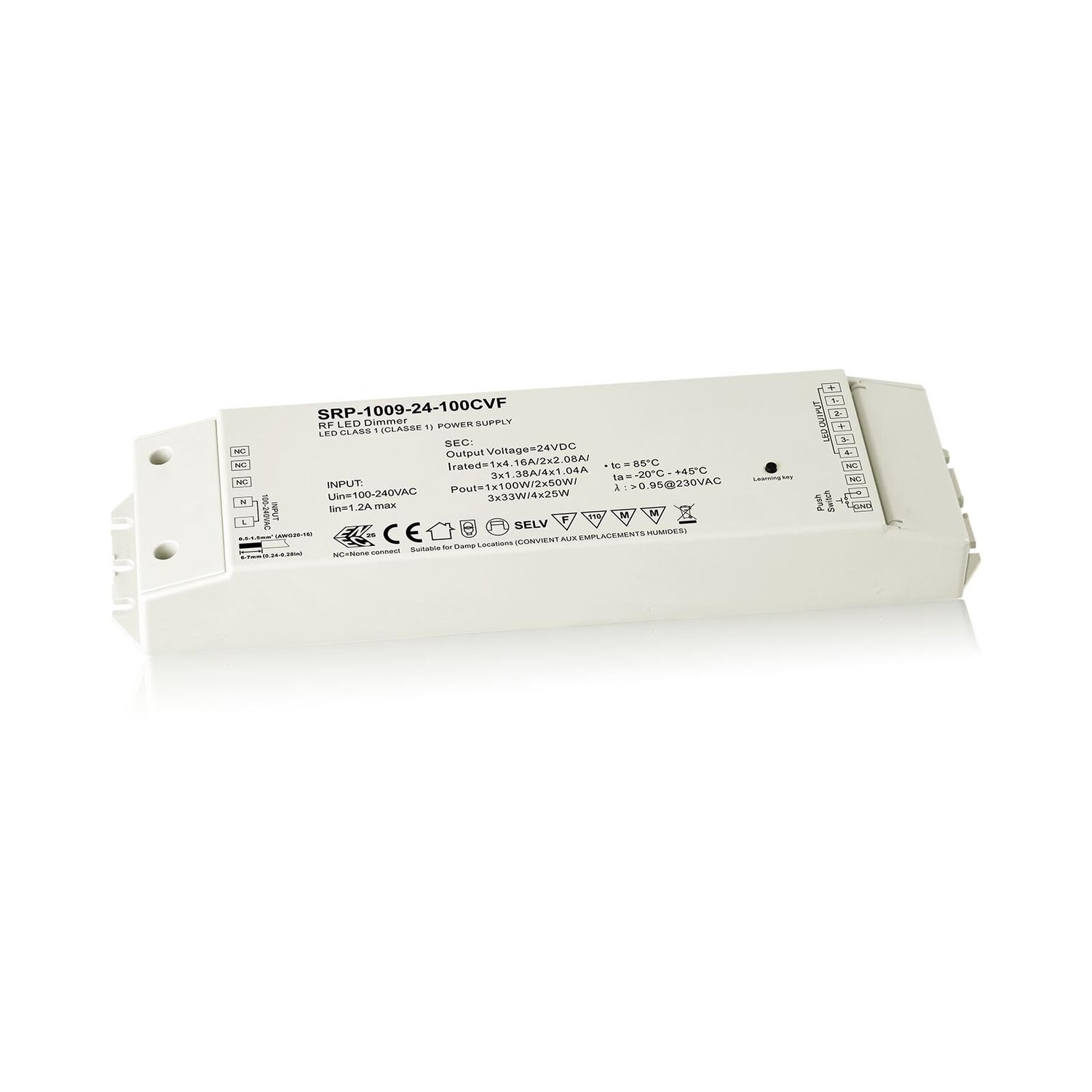

The 100W RF Dimmable LED Driver offers a maximum output power of 100W with 4 channels of 24VDC constant voltage output. It features a class 1 power supply with a fully isolated plastic case, ensuring high power factor and efficiency.
This driver is designed to control single color, dual color, and RGB/RGBW LED lighting and is compatible with a variety of RF remotes. It also includes a push dim function when connected with a push switch, making it suitable for indoor LED lighting applications.
The driver operates within a radio frequency range of 868/869.5/916.5/434 MHz.
| Output | LED Channel | 4 |
|---|---|---|
| Output | DC Voltage | 24V DC |
| Output | Max. Current | Max. 4.16A/CH, CH1+CH2+CH3+CH4=4.16A |
| Output | Voltage Tolerance | ±1% |
| Output | Rated Power | max. 100W |
| Input | Voltage Range | 100-240V AC |
| Input | Frequency Range | 50/60Hz |
| Input | Power Factor (Typ.) | > 0.90 @ 230VAC |
| Input | Total Harmonic Distortion | ≤ THD 15% (@ full load / 230VAC) |
| Input | Efficiency (Typ.) | 90% @ 230VAC full load |
| Input | AC Current (Typ.) | 1.2A @ 100VAC, 0.5A @ 230VAC |
| Input | Inrush Current (Typ.) | COLD START Max. 50A at 230VAC |
| Input | Leakage Current | < 0.5mA /230VAC |
| Control | Dimming Interface | RF Wireless/PUSH LV |
| Control | Dimming Range | 0.1%-100% |
| Control | Dimming Method | Pulse Width Modulation |
| Protection | Over Current | Yes, recovers automatically after fault condition is removed |
| Protection | Over Temperature | Yes, recovers automatically after fault condition is removed |
| Environment | Working Temp | -20℃ ~ +45℃ |
| Environment | Max. Case Temp | 85℃ |
| Environment | Working Humidity | 10% ~ 95% RH non-condensing |
| Environment | Storage Temp. & Humidity | -40℃ ~ +80℃，10%~95% RH |
| Safety & EMC | Safety Standards | TUV EN61347-1, EN61347-2-13 |
| Safety & EMC | Withstand Voltage | I/P-O/P: 3.75KVAC |
| Safety & EMC | Isolation Resistance | I/P-O/P: 100M Ohms / 500VDC / 25℃ / 70% RH |
| Safety & EMC | EMC Emission | EN55015, EN61000-3-2, EN61000-3-3 |
| Safety & EMC | EMC Immunity | EN61547, EN61000-4-2,3,4,5,6,8,11, surge immunity Line-Line 1KV |
| Others | MTBF | 186700H, MIL-HDBK-217F @ 230VAC full load and 25℃ ambient temperature |
| Others | Dimension | 244*64*32mm (L*W*H) |
