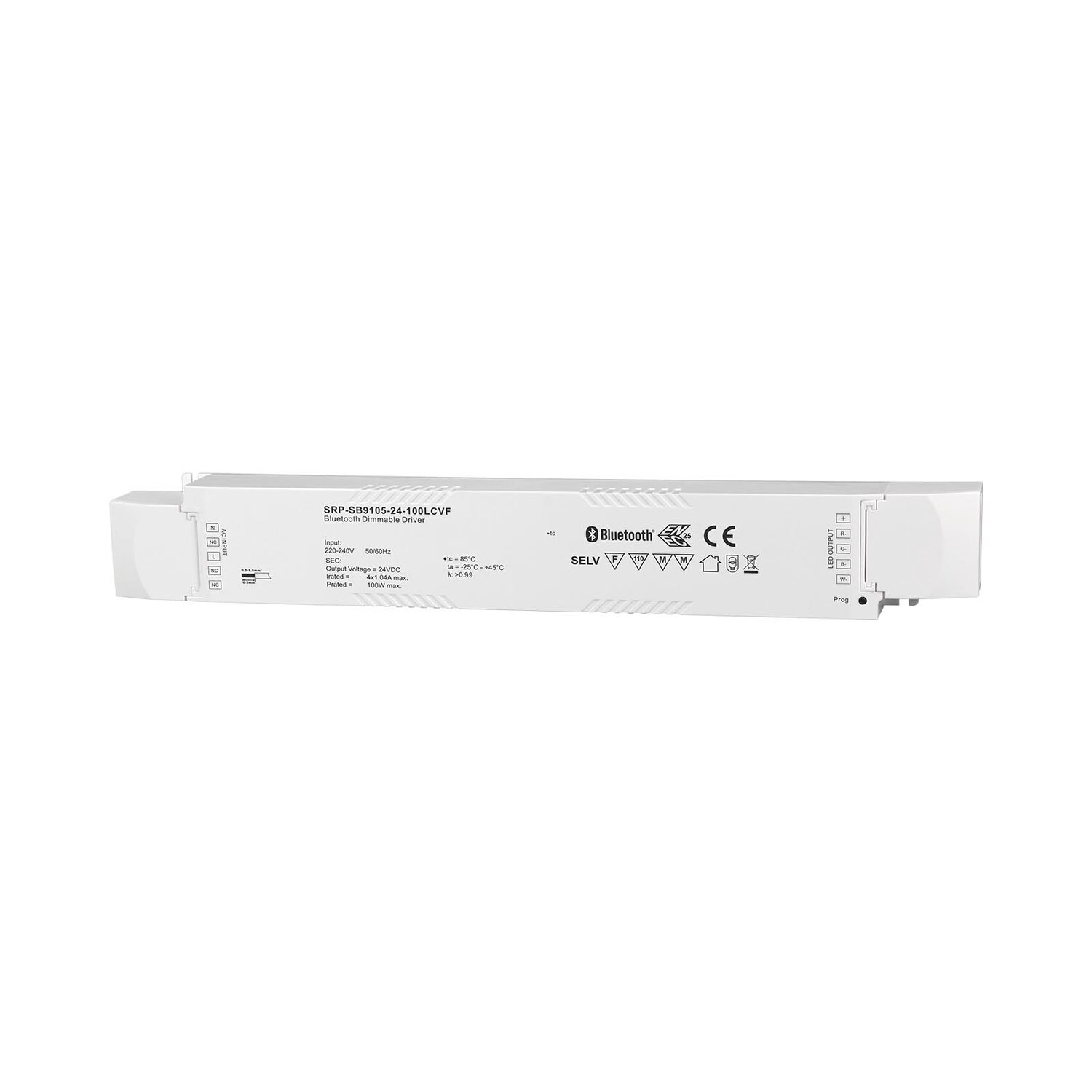

The 100W 24V Bluetooth RGBW Constant Voltage Dimmable LED Driver is a versatile dimmable LED driver with a maximum output power of 100W and four channels of DC 24V constant voltage output.
It offers high power factor and efficiency, along with deep, smooth dimming down to 0.1% without flicker. With a standby power consumption of less than 0.5W, it meets the latest ERP requirements. The driver enables control of ON/OFF, light intensity, CCT, and RGBW LED lights and can be controlled via both a smart app and remote controls without the need for a gateway. The smart app allows configuration of five different light types: RGBW, RGB, CCT, DIM, and ON/OFF. Operating on a 2.4GHz global frequency, the driver features easy pairing to the smart app by simply pressing a button. Its mesh network enhances control distance by transmitting signals to neighboring devices, with up to 30m transmission distance between each pair. The encrypted two-way communication ensures quick status feedback and reliable data transmission. It is compatible with universal RF+Bluetooth remotes, supporting up to 8 remotes per LED controller, and is suitable for indoor LED lighting applications.
| Output | LED Channel | 4 Channel |
|---|---|---|
| Output | DC Voltage | 24V DC |
| Output | Max. Current | Max. 4.17A |
| Output | Voltage Tolerance | ±3% |
| Output | Rated Power | Max. 100W |
| Input | Voltage Range | 220-240V AC |
| Input | Frequency Range | 50/60Hz |
| Input | Total Harmonic Distortion | THD < 9% (@ fullload /230VAC) |
| Input | Efficiency (Typ.) | 93% @ 230VAC full load |
| Input | AC Current (Typ.) | 0.47A @ 230VAC |
| Input | Inrush Current (Typ.) | COLD START Max. 32A @ 230VAC |
| Input | Leakage Current | < 0.5mA /230VAC |
| Input | Standby Power Consumption | < 0.5W |
| Input | Anti Surge | L-N:2KV |
| Control | Dimming Interface | Bluetooth |
| Control | Dimming Range | 0.1%-100% |
| Control | Dimming Method | Pulse Width Modulation |
| Control | Dimming Curve | Linear/Logarithmic optional |
| Protection | Over Voltage | Yes, recovers automatically after fault condition is removed |
| Protection | Over Load | Yes, recovers automatically after fault condition is removed |
| Protection | Short Circuit | Yes, recovers automatically after fault condition is removed |
| Protection | Over temperature | Yes, recovers automatically after temperature drop |
| Environment | Working Temp | -25℃ ~ +45℃ |
| Environment | Max. Case Temp | 85℃(Ta=”45℃”) |
| Environment | Working Humidity | 10% ~ 95% RH non-condensing |
| Environment | Storage Temp. & Humidity | -40℃ ~ +80℃，10%~95% RH |
| Safety & EMC | Safety Standards | IEC/EN61347-1, IEC/EN61347-2-13 |
| Safety & EMC | Withstand Voltage | I/P-O/P: 3.75KVAC |
| Safety & EMC | Isolation Resistance | I/P-O/P: 100M Ohms / 500VDC / / 70% RH 25℃ |
| Safety & EMC | EMC Emission | EN55015, EN61000-3-2 Class C, EN61000-3-3 |
| Safety & EMC | EMC Immunity | EN61000-4-2,3,4,5,6,8,11, EN614547 |
| Others | MTBF | 191500H, MIL-HDBK-217F @ 230VAC full load and 25℃ ambient temperature |
| Others | Dimension | 306.6*43*30mm (L*W*H) |
| Others | Warranty | 5 Years |
