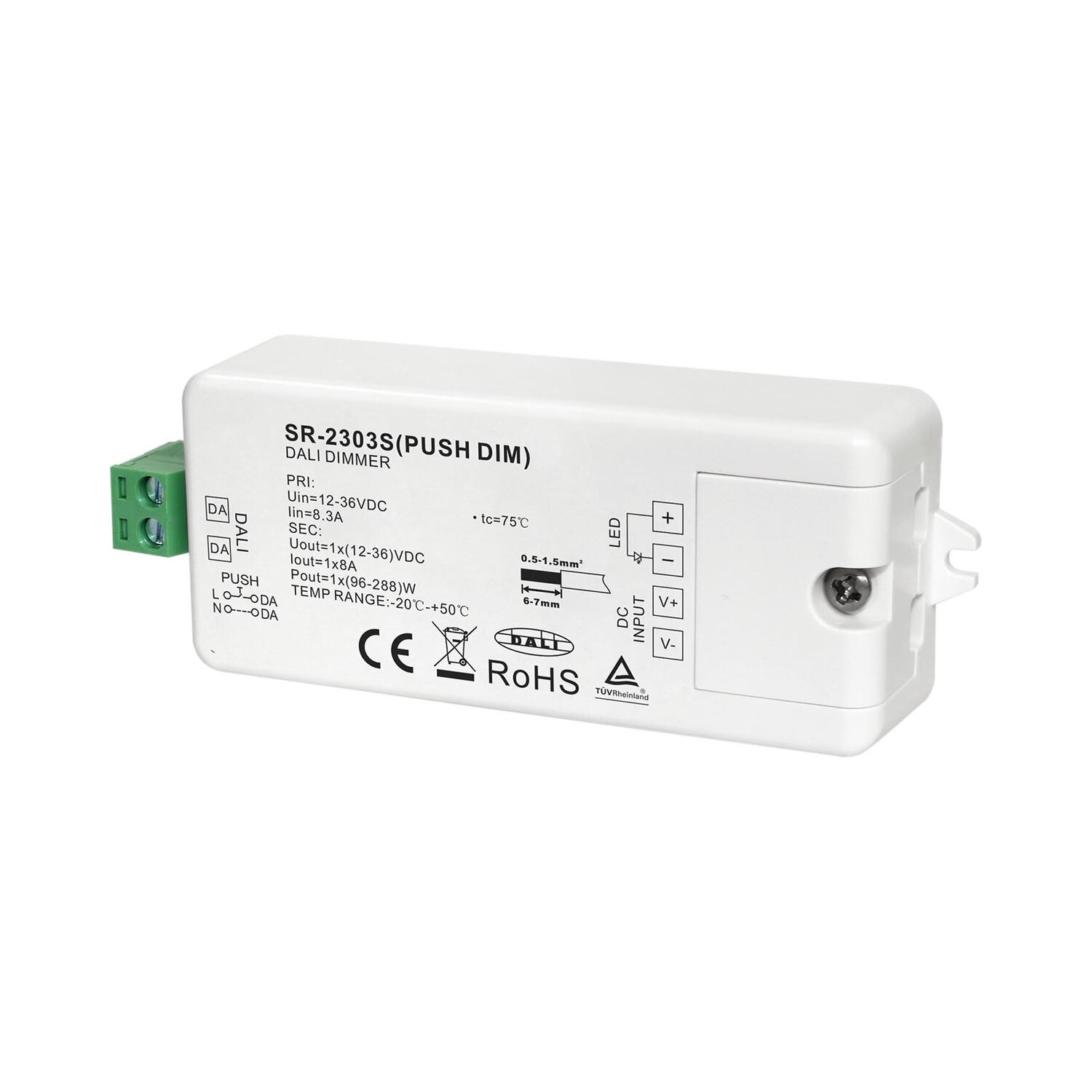

Product Description. This DALI & PUSH dimmer is a DALI-2, CE and FC certified device, coupled with 12-48VDC power input. This device is in compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, and can match all DALI systems in the market, so that you can rest assured to use it. With one DALI address input and one channel PWM output, this dimmer has both DALI dimmer and PUSH dimmer functions while connected with DALI master controllers and AC PUSH switches respectively.
| No | 1 | 2 | 3 |
|---|---|---|---|
| Input Voltage | 12-48VDC | 12-48VDC | 12-48VDC |
| Output Current | 1x8A@12-36VDC 1x4A@48VDC | 1x350mA | 1x700mA |
| Output Power | 1x(96-288)W@12-36VDC 1x192W@48VDC | 1x(4.2-16.8)W | 1x(8.4-33.6)W |
| Remarks | Constant voltage | Constant current | Constant current |
| Size(LxWxH) | 95x37x20mm | 95x37x20mm | 95x37x20mm |
