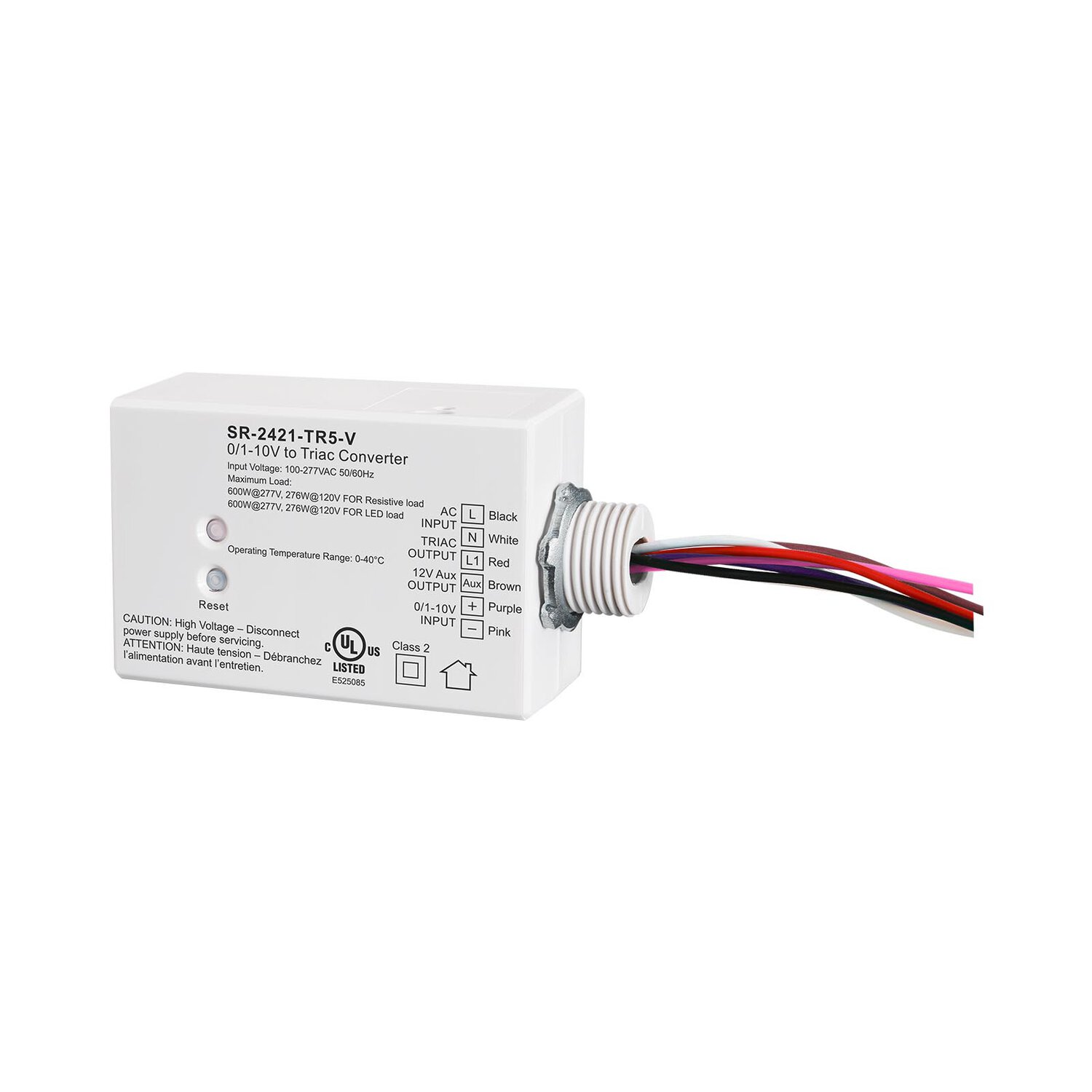

The 0-10V to Triac Load Dimmer with 12V Aux Output is a signal converter that allows 0-10V control of TRIAC loads. Designed with a standard 1/2″ knockout, it integrates easily into a junction box and features a built-in 0/1-10V interface, making it compatible with universal 0/1-10V signals. The integrated 12V auxiliary power supply output allows users to connect sensors and IoT devices. It can be used in conjunction with our BLE to 0-10V load dimmer for more convenient and flexible control. The dimmer supports reverse edge (trailing edge) type drivers and is UL listed under Category PAZX (Management Equipment, Energy), with a UL 2043 Plenum Rating. It comes with a 5-year warranty.
| Input | Power | 100-277VAC |
|---|---|---|
| Input | Signal | 0-10V |
| Output, Aux. Power | VDC/mA | 12V, Max. 80mA |
| Control, Triac Dimming | Line Voltage | 100-277VAC |
| Control, Triac Dimming | Current | Max. 2.3A |
| Environment | Operating Temperature | 0℃-+40℃ |
| Environment | Relative Humidity | 8% to 80% |
| Others | Size | 82.5*55*31mm |
