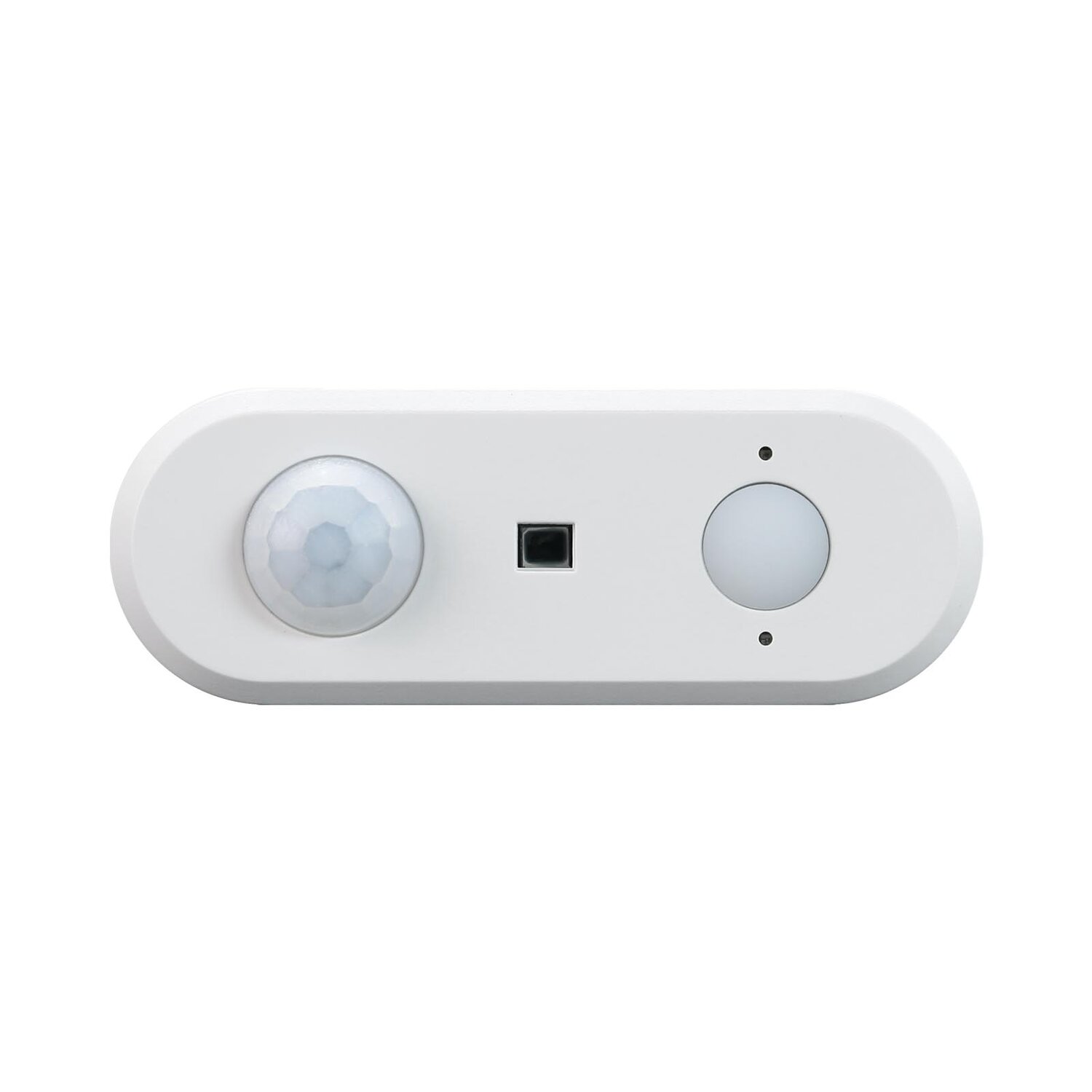

0-10V BLE Fixture-integrated Sensorless Controller

SR-SV9035A-V

Product description

Bluetooth to 0-10V signal converter, Bluetooth® mesh network
Built-in 20mA 0-10V signal output
Mesh network, which has a much longer control distance, transmits received signals to neighboring devices
All devices on 0-10V line are broadcast controlled by mobile application
Supporting our kinetic energy switches and EnOcean switches EWSSB and EWSDB
In typical indoor environment, the typical range for wireless communication is 20m to 25m. Actual range is dependent on field installation.
Standby power consumption less than 0.5W, meet latest ERP regulation
Available with Magnetic reset (Touch the top part of sensor for 5 seconds)*
On-board antenna
Waterproof grade: Ip20
5 years warranty

This Bluetooth® to 0-10V signal converter enables long-range wireless control via Bluetooth mesh, relaying signals between devices. It supports broadcast control through mobile app and works with kinetic and EnOcean switches (EWSSB/EWSDB). Built-in 20mA output and magnetic reset feature ensure flexible, energy-efficient control.

Input	Power	12-24VDC
Input	Signal	Bluetooth
Output, 0/1-10V	Current	Max.20mA
Control	Dimming Curve	Logarithmic
Control	Dimming Method	PWM
Environment	Operating Temperature	0℃~+45℃
Environment	Relative Humidity	8% to 80%
Others	Size	See dimensions
