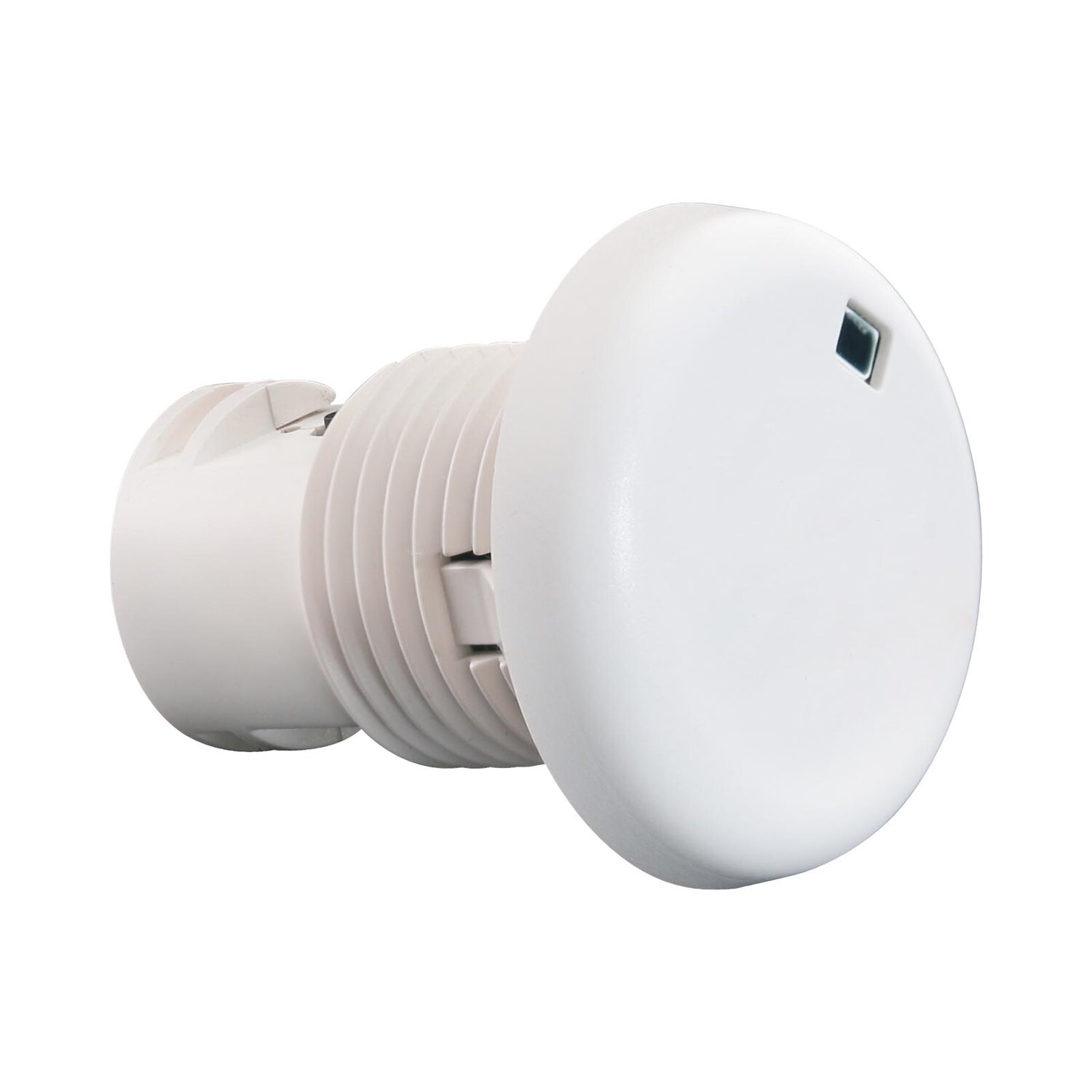

0-10V BLE Fixture-integrated Sensor-less Controller

SR-BL9032A-V

Product description

Bluetooth to 0-10V signal converter,Bluetooth@ mesh network
Built-in 20mA 0-10V signal output
Mesh network, which has a much longer control distance, transmits received signals to neighboring devices
All devices on 0-10v line are broadcast controlled
Supporting our kinetic energy switches and EnOcean switches EWSSB and EWSDB
In typical indoor environment, the typical range for wireless communication is 20m to 25m . Actual range is dependent on field installation.
On-board antenna
Waterproof grade: IP20
5 years warranty

The Bluetooth to 0-10V Signal Converter utilizes a Bluetooth mesh network to enable extended control distances by transmitting signals to neighboring devices. It features a built-in 20mA 0-10V signal output and allows for broadcast control of all devices on the 0-10V line. The converter supports kinetic energy switches and EnOcean switches EWSSB and EWSDB, with a typical wireless communication range of 20m to 25m in indoor environments, depending on installation conditions. Additionally, it includes an on-board antenna for enhanced connectivity.

Input	Power	12-24VDC
Input	Signal	Bluetooth
Output, 0/1-10V	Current	Max.20mA
Control	Dimming Curve	Logarithmic
Control	Dimming Method	PWM
Environment	Operating Temperature	0℃~+45℃
Environment	Relative Humidity	8% to 80%
Others	Size	See dimensions
