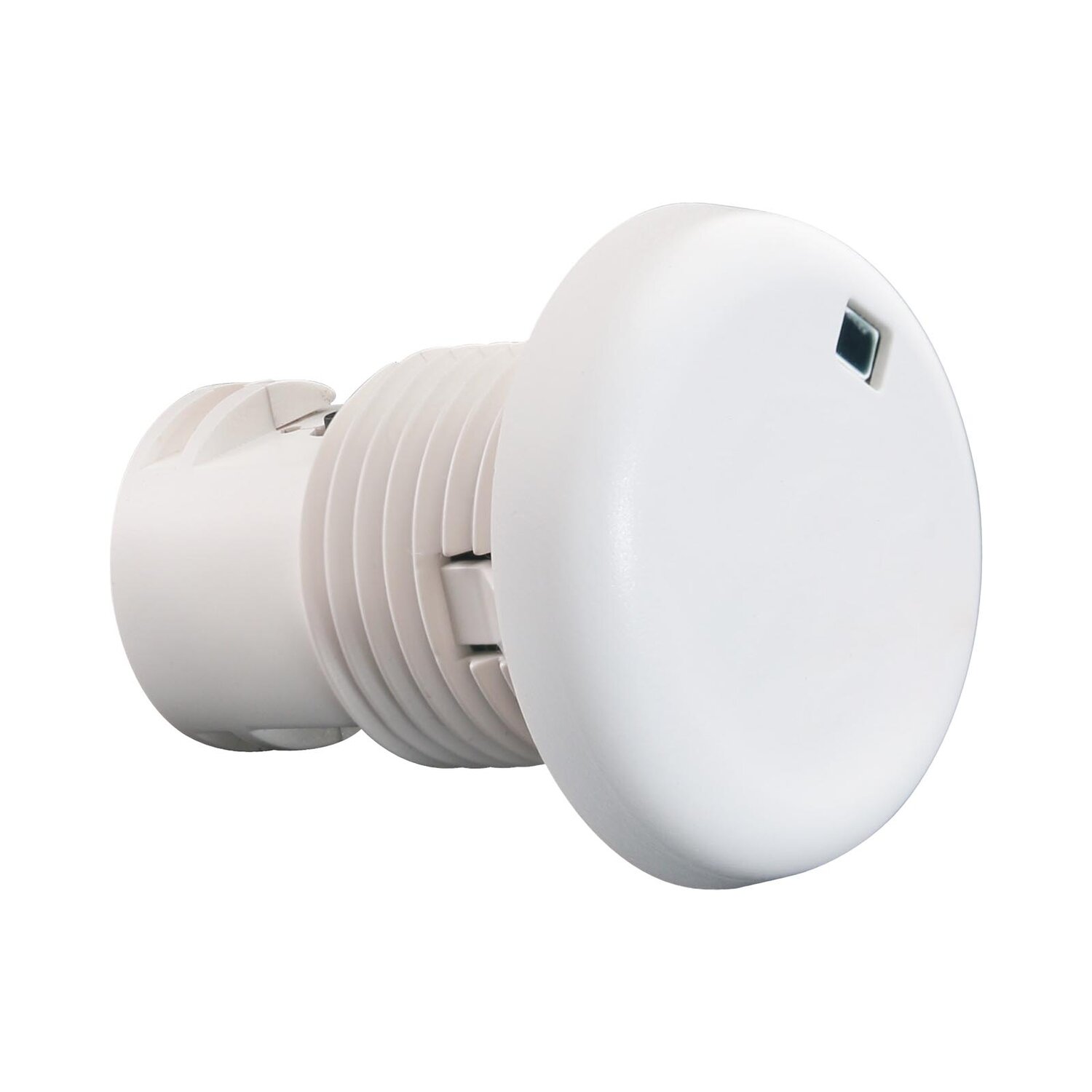

The Bluetooth to 0-10V Signal Converter features a Bluetooth mesh network that extends control distance by transmitting signals to neighboring devices. It includes a built-in 20mA 0-10V signal output, enabling broadcast control of all devices on the 0-10V line via a mobile application. This converter supports kinetic energy switches and EnOcean switches EWSSB and EWSDB, with a typical wireless communication range of 20m to 25m in indoor environments, depending on installation conditions. It operates with a standby power consumption of less than 0.5W to meet the latest ERP regulations and offers a magnetic reset option activated by touching the top part of the sensor for five seconds, along with an on-board antenna for improved connectivity.
| Input | Power | 12-24VDC |
|---|---|---|
| Input | Signal | Bluetooth |
| Output, 0/1-10V | Current | Max.20mA |
| Control | Dimming Curve | Logarithmic |
| Control | Dimming Method | PWM |
| Environment | Operating Temperature | 0℃~+45℃ |
| Environment | Relative Humidity | 8% to 80% |
| Others | Size | See dimensions |
