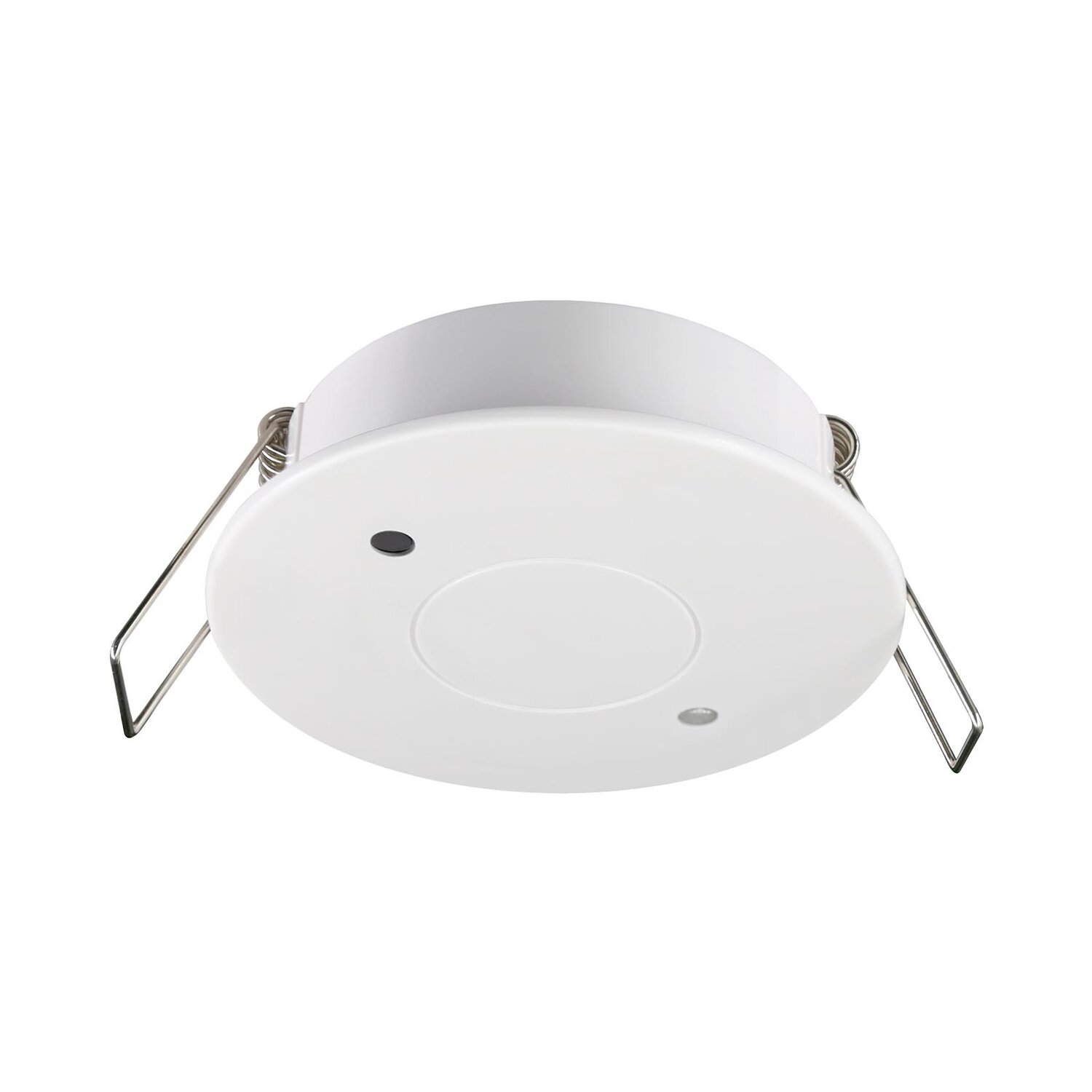

0-10V BLE Ceiling Mounted Microwave Sensor Controller

SR-BL9030A-MW-V

Product description

0-10V BLE ceiling mounted sensor controller, Bluetooth@ mesh network
Microwave sensing with daylight haversting function
Built-in 20mA 0-10V signal output
Mesh network, which has a much longer control distance, transmits received signals to neighboring devices
All devices on 0-10v line are broadcast controlled by mobile application
Supporting our kinetic energy switches and EnOcean switches EWSSB and EWSDB
In typical indoor environment, the range for wireless communication is 20m to 25m . Actual range is dependent on field installation.
On-board antenna
Available with Magnetic reset (Touch the top part of sensorfor 5 seconds)
Waterproof grade: IP20
5 years warranty

The 0-10V BLE Ceiling Mounted Sensor Controller features a Bluetooth mesh network with microwave sensing and daylight harvesting capabilities. It has a built-in 20mA 0-10V signal output and allows all devices on the 0-10V line to be controlled via a mobile application. The mesh network extends control distance by transmitting signals to neighboring devices and supports kinetic energy switches and EnOcean switches EWSSB and EWSDB. In typical indoor environments, the wireless communication range is between 20m and 25m, depending on installation conditions. The controller includes an on-board antenna and offers a magnetic reset option, activated by touching the top part of the sensor for five seconds. It has a waterproof grade of IP20 and comes with a five-year warranty.

Input	Power	12-24VDC
Input	Signal	Bluetooth
Output,0/1-10V	Current	Max.20mA
Control	Dimming Curve	Logarithmic
Control	Dimming Method	PWM
Environment	Operating Temperature	0℃~+45℃
Environment	Relative Humidity	8% to 80%
Others	Size	See dimensions
