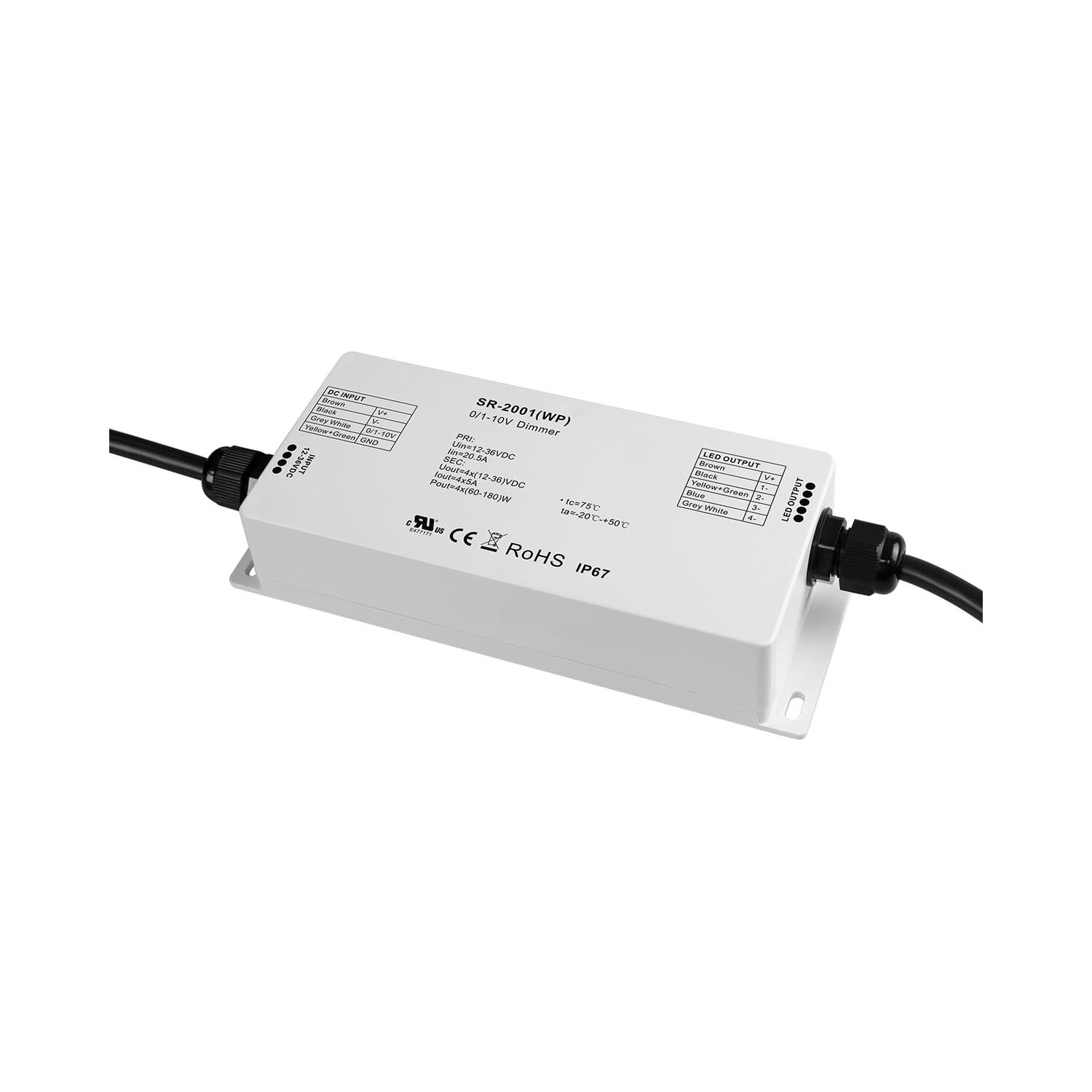

0/1-10V LED Dimmer

SR-2001(WP)

Product description

With 1 Channel 0/1-10V signal Input, 4 channels PWM Output, 4 channels controlled synchronously
Analog dim driver, receive standard 0/1-10V dim signal input
0-100% dimming range via logarithmic characteristic, perfect for human’s vision
256 levels of Gray scales, smoothly without any flash
To work with power repeater to expand output unlimitedly.
Can coordinate with 0/1-10V regulator or 0/1-10V dimmer to do analog dimming, smooth dimming curve, be in direct proportion to voltage curve of regular.
Waterproof grade: IP67

The SR-2001WP series is a waterproof 0/1-10V LED dimmer which receives standard 1-10V dimming signal and outputs PWM signal with IP67 rating. The 1-10V dimmer is designed with 1 channel 1-10V input and 4 channel PWM output and available in constant voltage.
0%-100% dimming range via logarithmic characteristic can be very comfortable for human eyes. 256 levels of grey scale enable the LED dimmer to adjust brightness softly and smoothly without any flickering.
The waterproof LED dimmer can be used in outdoor and damp environment.

No	1	2	3
Input Voltage	12-36VDC	12-36VDC	12-36VDC
Output Current	4x5A	4x350mA	4x700mA
Output Power	4x(60-180)W	4x(4.2-12.6)W	4x(8.4-25.2)W
Remarks	Constant voltage	Constant current	Constant current
Size(LxWxH)	180.5×73.6x38mm	180.5×73.6x38mm	180.5×73.6x38mm
