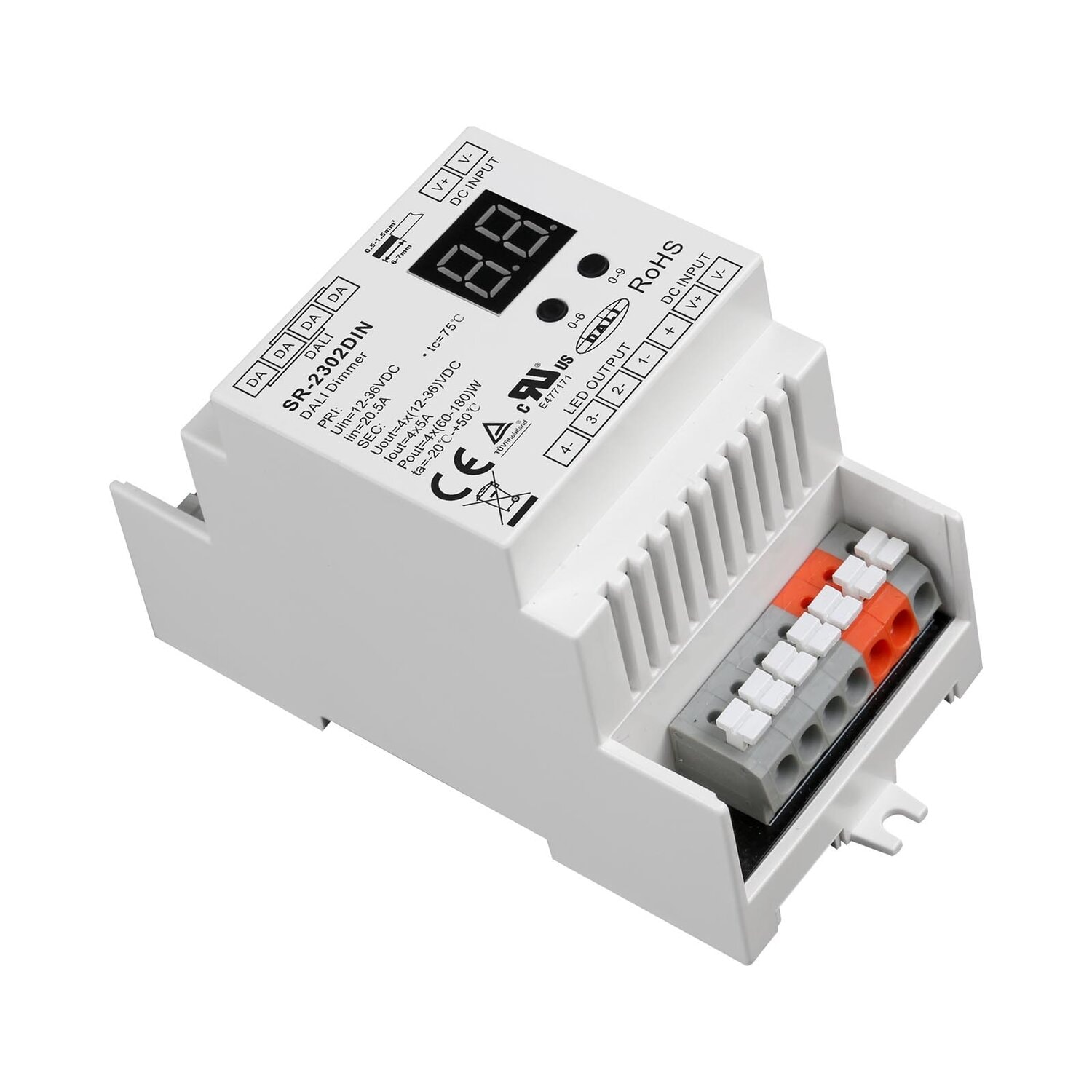

The DALI Dimmer SR-2302DIN is a din rail mounted dimming controller which complies to standard DALI protocol with constant voltage output. The DALI address can be manually assigned and shown on the numeric digital display or automatically assigned by master controllers.
1 DALI address is available for 4 channels to work synchronously. 0%-100% smooth dimming can be achieved by the DALI dimmer via logarithmic dimming, which is perfect for human’s vision.
| No | 1 | 2 | 3 |
|---|---|---|---|
| Tensión de entrada | 12-36VDC | 12-36VDC | 12-36VDC |
| Corriente de salida | 4x5A | 4x350mA | 4x700mA |
| Potencia de salida | 4x(60-180)W | 4x(4,2-12,6)W | 4x(8,4-25,2)W |
| Observaciones | Tensión constante | Corriente constante | Corriente constante |
| Tamaño (LxAxA) | 110 x 53 x 65 mm | 110 x 53 x 65 mm | 110 x 53 x 65 mm |
| Consumo DALI | 2 mA | 2 mA | 2 mA |
| Gama de regulación | 0.1%-100% | 0.1%-100% | 0.1%-100% |
| Temperatura ambiente | -20℃ +50℃ | -20℃ +50℃ | -20℃ +50℃ |
