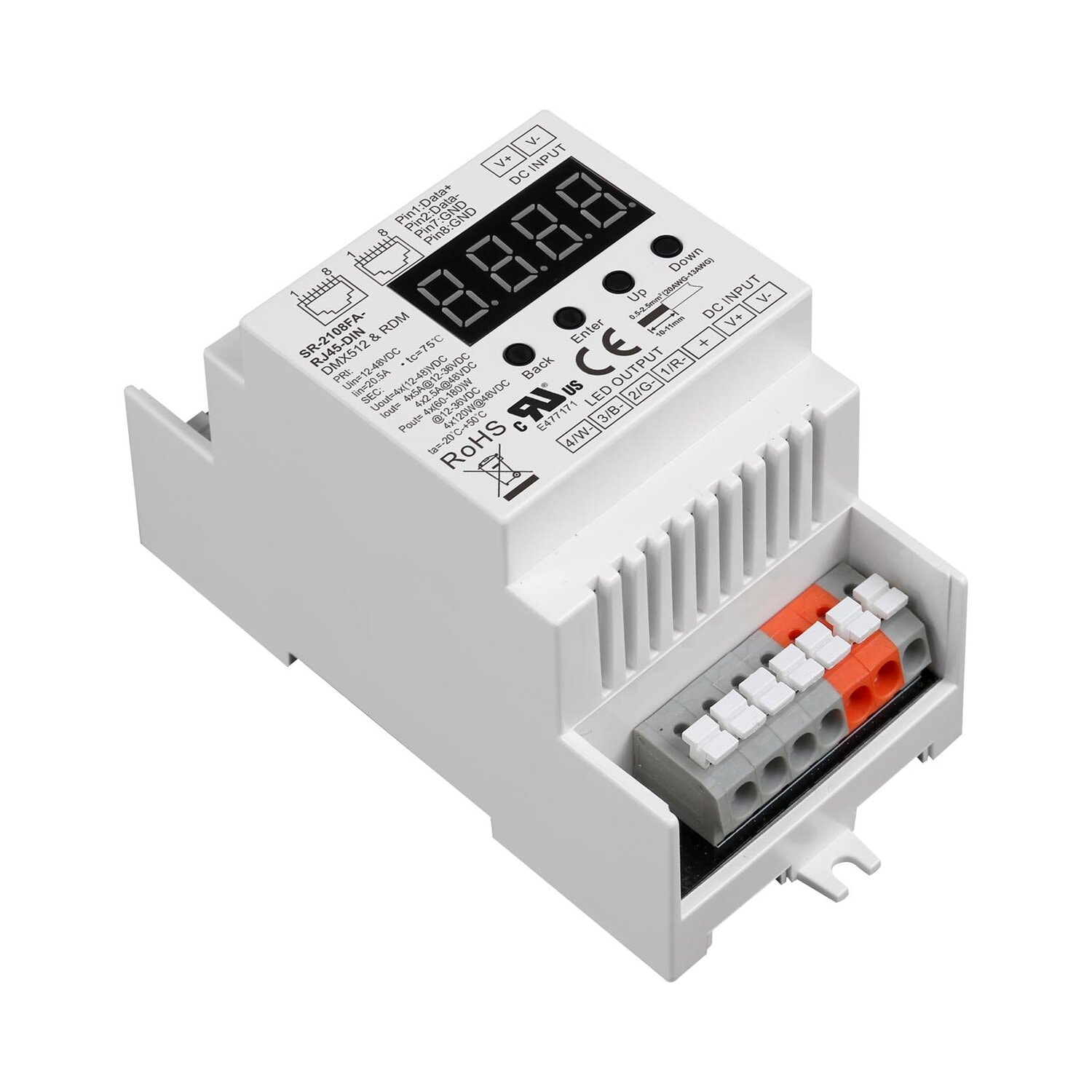

The Ultra-Pro 4CH RDM DMX512 Decoder is an RDM-enabled DMX decoder with a digital display for easy viewing and setting of the DMX address and DMX channel. It offers adjustable PWM output resolution between 8bit and 16bit, with a configurable output PWM frequency ranging from 500Hz to 30kHz.
The device allows the output dimming curve gamma value to be set between 0.1 and 9.9, and the decoding mode is also customizable. Designed for DIN rail installation, this decoder is suitable for various setups and efficient control of lighting systems.
| No. | 1 | 2 | 3 |
|---|---|---|---|
| Tensión de entrada | 12-36VDC | 12-48VDC | 12-48VDC |
| Corriente de salida | 4x5A | 4x350mA | 4x700mA |
| Potencia de salida | 4x(60-180)W | 4x(4,2-16,8) W | 4x(8,4-33,6) W |
| Observaciones | Tensión constante | Corriente constante | Corriente constante |
| Tamaño (LxAxA) | 110 x 53 x 65 mm | 110 x 53 x 65 mm | 110 x 53 x 65 mm |
