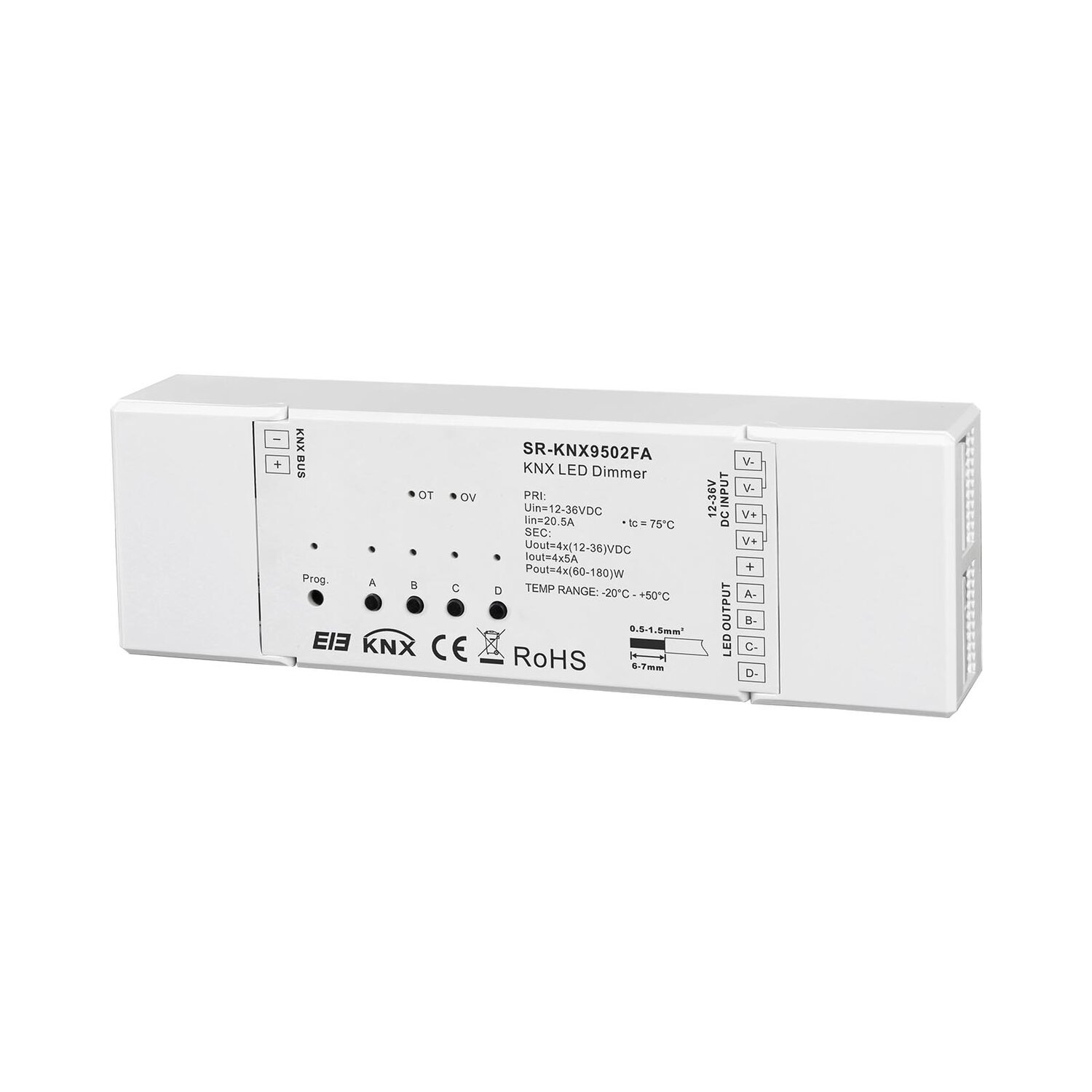

The KNX Dimmer SR-KNX9502FA is an easy connection constant voltage dimming controller with 4 channel, 5A per channel output, which can be compatible with KNX system to dim and switch single color LED lighting and support group, scene and sequence. The KNX dimmer is designed with newly updated outer shell which features easy connection terminal without screw to ensure easy and fast connection.
0%-100% smooth dimming without any flickering can be achieved by the KNX dimmer, which is perfect for human’s vision. Default frequency is 600Hz PWM and frequency can be adjustable by factory setting.
| No | 1 | 2 | 3 |
|---|---|---|---|
| Tensión de entrada | 12-36VDC | 12-36VDC | 12-36VDC |
| Corriente de salida | 4x5A | 4x350mA | 4x700mA |
| Potencia de salida | 4x(60-180)W | 4x(4,2-12,6)W | 4x(8,4-25,2)W |
| Observaciones | Tensión constante | Corriente constante | Corriente constante |
| Tamaño (LxAxA) | 170 × 53,4 × 28 mm | 170 × 53,4 × 28 mm | 170 × 53,4 × 28 mm |
