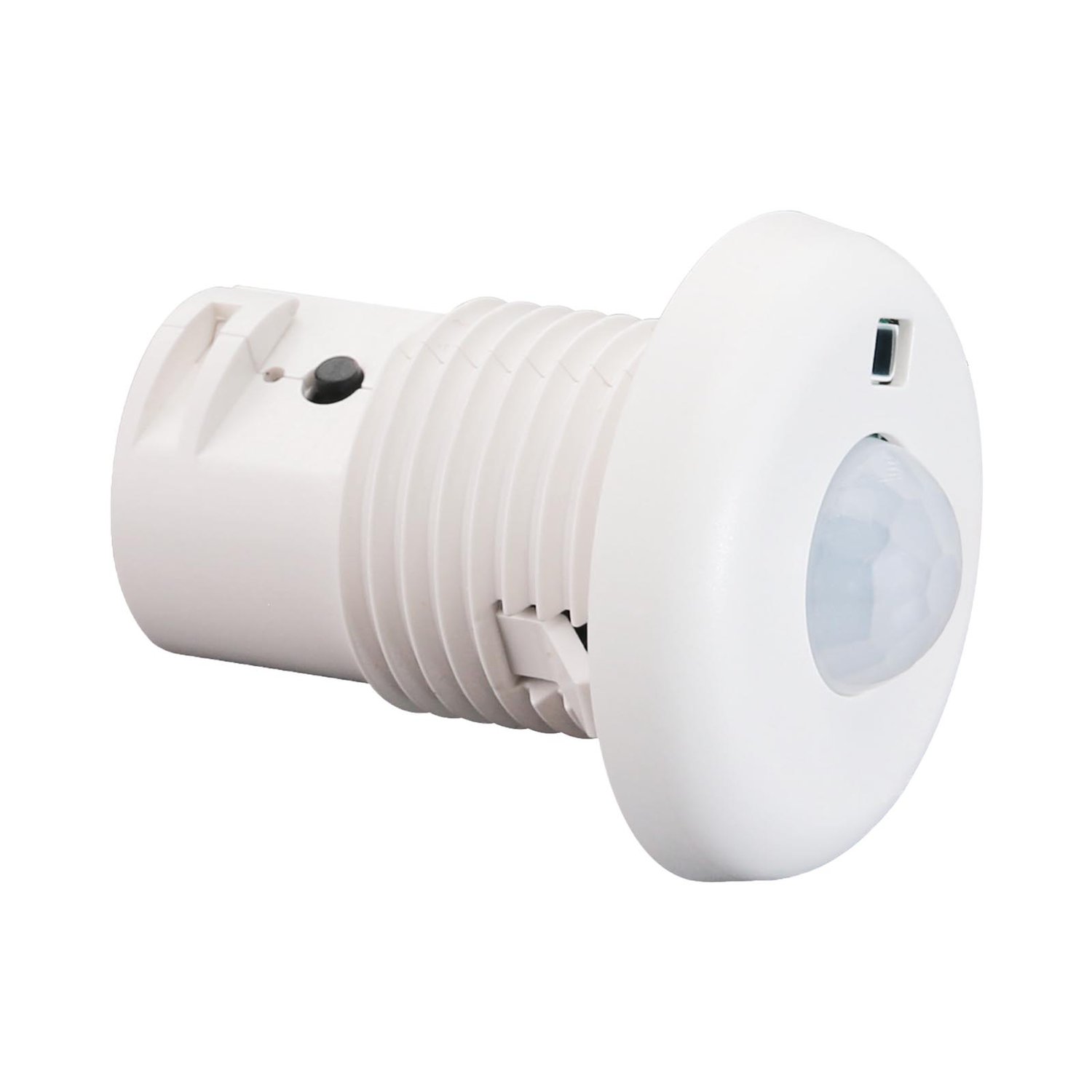

The Bluetooth to 0-10V Signal PIR Sensor Controller features a Bluetooth mesh network that extends control distance by transmitting signals to neighboring devices. It includes a built-in 20mA 0-10V signal output and allows all devices on the 0-10V line to be broadcast controlled via a mobile application. This controller supports our kinetic energy switches and EnOcean switches EWSSB and EWSDB, with a typical wireless communication range of 20m to 25m in indoor environments, depending on installation conditions. With standby power consumption under 0.5W, it meets the latest ERP regulations. Additionally, it offers a magnetic reset option that can be activated by touching the top part of the sensor for five seconds, and it features an on-board antenna for enhanced connectivity.
| Entrada | Potencia | 12-24VDC |
|---|---|---|
| Entrada | Señal | Bluetooth |
| Salida, 0/1-10 V | Actual | Máx. 20 mA |
| Controlar | Curva de atenuación | Logarítmico |
| Controlar | Método de regulación | PWM |
| Medio ambiente | Temperatura de funcionamiento | 0℃~+45℃ |
| Medio ambiente | Humedad relativa | 8% a 80% |
| Otros | Talla | Ver dimensiones |
